16 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Network

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCFTB-16I-1（7232033）

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	White、Grey	Capacity:	16 Core
Material:	ABS、ABS+PC	PLC Splitter Type:	Mini PLC Splitter
Dimension(LWD,MM):	32026292	Weight(KG):	1.3
Highlight:	fiber optical terminal box , fiber termination box

Product Description

Fiber Optical Terminal Box - ZCFTB-16I-1 (7232033)

Product Overview

ZION COMMUNICATION Model ZCFTB-16I-1 serves as the termination point in FTTX networks, connecting drop cables with feeder cables to accommodate at least 16 users. This terminal box provides optimal space for splicing, splitting, storage, and cable management operations.

Technical Specifications

Model Number	ZCFTB-16I-1 (7232033)
Available Colors	White, Black
Capacity	16 core
Protection Level	IP55
Material	ABS, ABS+PC
Flame Retardant Performance	Non-flame retardant
PLC Splitter Type	Mini PLC Splitter
Dimensions (L×W×D)	320 × 262 × 92 mm
Inner Box Size	330 × 275 × 105 mm
Outer Box Size	505 × 345 × 565 mm
Weight	1.3 kg
Gross Weight	15 kg
Units per Carton	10 PCS

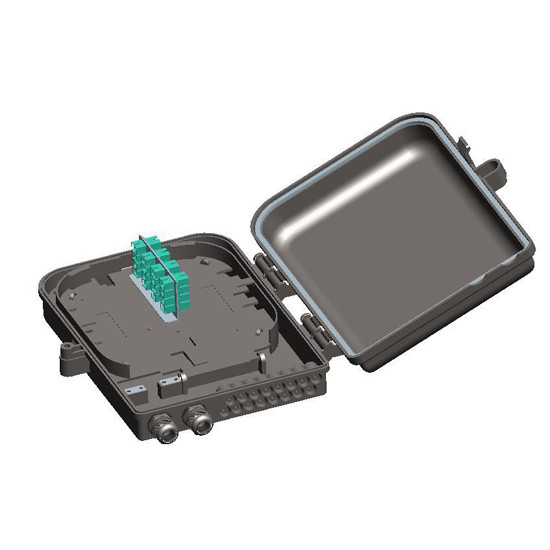

Product Images

Packaging Information

Plastic bag size: 320 × 262 × 92 mm
Inner box with single corrugated size: 330 × 275 × 105 mm
Carton with double corrugated size: 505 × 345 × 565 mm (10 PCS/Box)
Weight per carton: 15 kg

Transportation & Storage Guidelines

Avoid exposure to rain, direct sunlight, and physical compression during transportation.

Store products in warehouse conditions protected from moisture, sunlight, and fire sources.

Recommended storage temperature range: 25℃ to +40℃

Note: Special components susceptible to damage during transit require careful protective handling.
