16 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Network

16 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Network
16 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Network
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCFTB-16G-2（7232032）
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: White、Grey Capacity: 16 Core
Material: ABS、ABS+PC PLC Splitter Type: Module Box PLC Splitter
Dimension(L*W*D,MM): 320*270*110 Weight(KG): 1.4
Highlight:

fiber optical terminal box

,

fiber termination box

Product Description

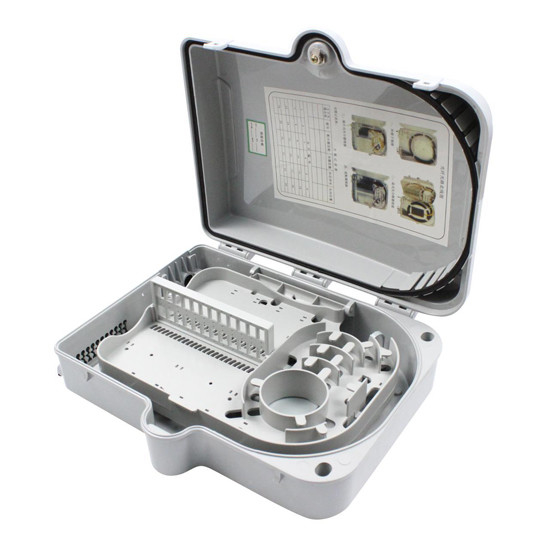

Fiber Optical Terminal Box ZCFTB-16G-2 (7232032)
Product Overview

The ZION COMMUNICATION Model ZCFTB-16G-2 serves as the termination point in Fttx networks, connecting drop cables with feeder cables to accommodate at least 16 users. This terminal box provides optimal space for splicing, splitting, storage, and cable management operations.

16 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Network 0
Technical Specifications
Model Number ZCFTB-16G-2 (7232032) 16 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Network 1
Color Options White, Black
Capacity 16 core
Protection Level IP55
Material ABS, ABS+PC
Flame Retardant Performance Non-flame retardant
PLC Splitter Type Module Box PLC splitter
Dimensions (L×W×D, MM) 320×270×110
Inner Box Size (MM) 325×275×115
Outer Box Size (MM) 590×335×565
Weight (KG) 1.4
Gross Weight (KG) 15
Units per Carton 10
Packaging Information
  • Plastic bag size: 320×270×110mm
  • Inner box with single corrugated size: 325×275×115mm
  • Carton with double corrugated size: 590×335×565mm (10PCS/Box)
  • Weight per carton: 15KG
Transportation and Storage Guidelines
  • Avoid exposure to rain, direct sunlight, and excessive pressure during transportation
  • Store products in warehouses protected from moisture, sunlight, and fire sources
  • Recommended storage temperature: -25℃ to +40℃
  • Special components susceptible to damage should be carefully protected during transit
