16 Core Fiber Optical Terminal Box with IP65 Protection and ABS+PC Material for Secure Fiber Management

16 Core Fiber Optical Terminal Box with IP65 Protection and ABS+PC Material for Secure Fiber Management
16 Core Fiber Optical Terminal Box with IP65 Protection and ABS+PC Material for Secure Fiber Management
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCFTB-16F-2（7232031）
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: White、Grey Capacity: 16 Core
Material: ABS、ABS+PC PLC Splitter Type: Mini PLC Splitter
Dimension(L*W*D,MM): 344*210*103 Weight(KG): 1.8
Highlight:

fiber optical terminal box

,

fiber termination box

Product Description

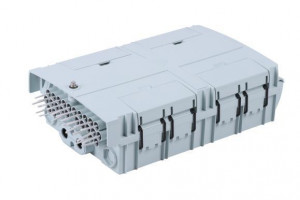

Fiber Optical Terminal Box ZCFTB-16F-2 (7232031)
Product Overview

ZION COMMUNICATION Model ZCFTB-16F-2 serves as the termination point in FTTX networks, connecting drop cables with feeder cables to accommodate at least 16 users. This terminal box provides optimal space for splicing, splitting, storage, and cable management operations.

16 Core Fiber Optical Terminal Box with IP65 Protection and ABS+PC Material for Secure Fiber Management 0
Technical Specifications
Model Number ZCFTB-16F-2 (7232031) 16 Core Fiber Optical Terminal Box with IP65 Protection and ABS+PC Material for Secure Fiber Management 1
Color White, Grey
Capacity 16 core
Protection Level IP65
Material ABS, ABS+PC
Flame Retardant Performance Non-flame retardant
PLC Splitter Type Mini PLC Splitter
Dimensions (L×W×D, mm) 344×210×103
Inner Box Size (mm) 350×215×110
Outer Box Size (mm) 445×365×565
Weight (kg) 1.8
Gross Weight (kg) 19
Units per Carton 10
Product Features
  • Available in 4/8/12/16/24/48/96 core configurations
  • IP55 to IP68 protection ratings
  • Constructed from ABS, ABS+PC, or PP+glassfiber materials
  • Compatible with Mini/Module PLC Splitters
  • Robust design for outdoor and demanding environments
Product Images
16 Core Fiber Optical Terminal Box with IP65 Protection and ABS+PC Material for Secure Fiber Management 2 16 Core Fiber Optical Terminal Box with IP65 Protection and ABS+PC Material for Secure Fiber Management 3 16 Core Fiber Optical Terminal Box with IP65 Protection and ABS+PC Material for Secure Fiber Management 4
Packaging Information
  • Plastic bag size: 344×210×103mm
  • Inner box with single corrugated size: 350×215×110mm
  • Carton with double corrugated size: 445×365×565mm (10 units per box)
  • Weight per carton: 19kg
Transportation & Storage Guidelines
  • Avoid exposure to rain, direct sunlight, and excessive pressure during transportation
  • Store products in warehouse conditions avoiding moisture, sunlight, and fire hazards
  • Recommended storage temperature: 25℃ to +40℃
  • Special components susceptible to damage require careful handling protection
