16 Core Fiber Optical Terminal Box with IP65 Protection and ABS+PC Material for Secure Fiber Management

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCFTB-16E-2（7232030）

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	White、Black	Capacity:	16 Core
Material:	ABS、ABS+PC	PLC Splitter Type:	Module Box PLC Splitter
Dimension(LWD,MM):	344210103	Weight(KG):	1.8
Highlight:	fiber optical terminal box , fiber termination box

Product Description

Fiber Optical Terminal Box ZCFTB-16E-2 (7232030)

Product Overview

ZION COMMUNICATION Model ZCFTB-16E-2 serves as the termination point in FTTX networks, connecting drop cables with feeder cables to accommodate at least 16 users. This terminal box provides optimal space for splicing, splitting, storage, and cable management operations.

Available Configurations: 4/8/12/16/24/48/96 cores
Protection Levels: IP55 to IP68
Materials: ABS, ABS+PC, PP+glassfiber
Splitter Types: Mini/Module PLC Splitter

Technical Specifications

Model Number	ZCFTB-16E-2 (7232030)
Color	White, Black
Capacity	16 core
Protection Level	IP65
Material	ABS, ABS+PC
Flame Retardant Performance	Non-flame retardant
PLC Splitter Type	Module Box PLC splitter
Dimensions (L×W×D, mm)	344×210×103
Inner Box Size (mm)	350×215×110
Outer Box Size (mm)	445×365×565
Weight (kg)	1.8
Gross Weight (kg)	19
Pieces per Carton	10

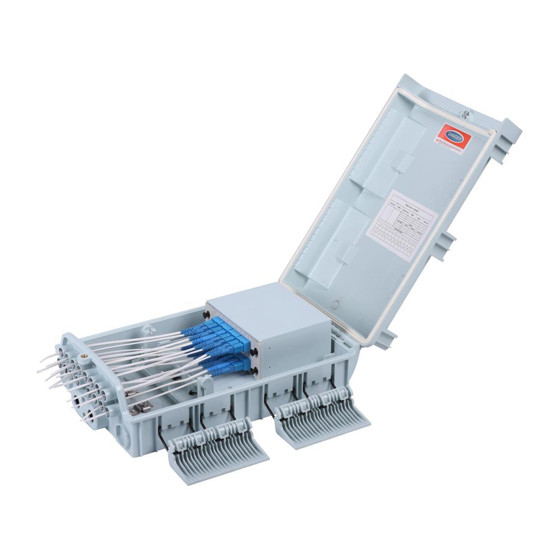

Product Images

Packaging Information

Plastic bag size: 344×210×103mm
Inner box with single corrugated size: 350×215×110mm
Carton with double corrugated size: 445×365×565mm (10PCS/Box)
Weight per carton: 19KG

Transportation & Storage Guidelines

Avoid exposure to rain, direct sunlight, and compression during transportation
Store products in warehouse conditions avoiding moisture, sunlight, and fire hazards
Recommended storage temperature: 25℃ to +40℃
Special components susceptible to damage during transit require careful protection
