16 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for FTTX Networks

16 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for FTTX Networks
16 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for FTTX Networks
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCFTB-16D-2（7232029）
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: White、Black Capacity: 16 Core
Material: ABS、ABS+PC PLC Splitter Type: Module Box PLC Splitter
Dimension(L*W*D,MM): 172*288*103 Weight(KG): 1
Highlight:

fiber optical terminal box

,

fiber termination box

Product Description

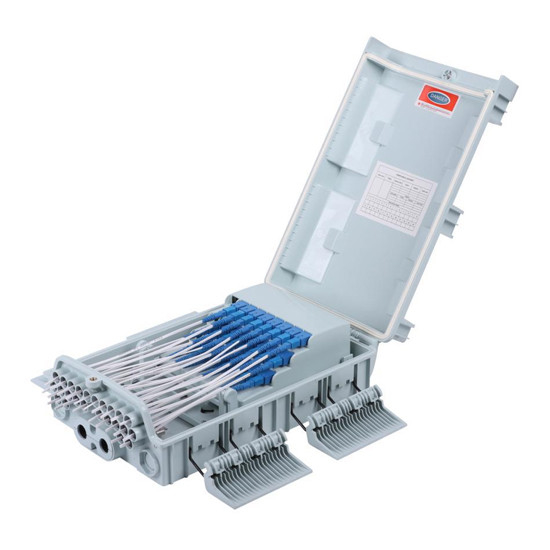

Fiber Optical Terminal Box ZCFTB-16D-2 (7232029)
Product Overview
ZION COMMUNICATION Model ZCFTB-16D-2 serves as the termination point in FTTx networks, connecting drop cables with feeder cables to accommodate at least 16 users. This terminal box provides optimal space for splicing, splitting, storage, and cable management operations.
16 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for FTTX Networks 0
Key Features
  • Available in 4/8/12/16/24/48/96 core configurations
  • IP55 to IP68 protection rating options
  • Constructed with ABS, ABS+PC, or PP+glassfiber materials
  • Supports Mini/Module PLC Splitter integration
  • Professional-grade optical terminal box solution
Technical Specifications
Specification Details
Model Number ZCFTB-16D-2 (7232029)
Color Options White, Black
Capacity 16 core
Protection Level IP55
Material ABS, ABS+PC
Flame Retardant Performance Non-flame retardant
PLC Splitter Type Module Box PLC splitter
Dimensions (L×W×D, mm) 172×288×103
Inner Box Size (mm) 300×200×115
Outer Box Size (mm) 590×315×415
Weight (kg) 1
Gross Weight (kg) 10
Units per Carton 10
Packaging Information
  • Plastic bag size: 172×288×103mm
  • Inner box with single corrugated size: 300×200×115mm
  • Carton with double corrugated size: 590×315×415mm (10 units per box)
  • Weight per carton: 10kg
Transportation & Storage Guidelines
During transportation, protect products from rain, direct sunlight, and excessive pressure. Store in a warehouse environment avoiding moisture, sunlight, and fire sources. Maintain storage temperature between 25℃ and +40℃. Handle special components with care to prevent damage during transit.
