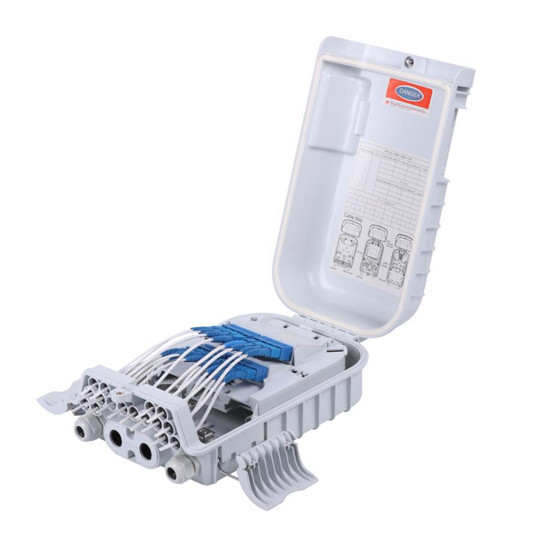

16 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for FTTX Networks

16 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for FTTX Networks
16 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for FTTX Networks
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCFTB-16D-1（7232028）
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: White、Black Capacity: 16 Core
Material: ABS、ABS+PC PLC Splitter Type: Mini PLC Splitter
Dimension(L*W*D,MM): 172*288*103 Weight(KG): 1
Highlight:

fiber optical terminal box

,

fiber termination box

Product Description

Fiber Optical Terminal Box - ZCFTB-16D-1 (7232028)

4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX

16 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for FTTX Networks 0
Technical Specifications
Model No. ZCFTB-16D-1(7232028) 16 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for FTTX Networks 1
Color White, Black
Capacity 16 core
Protection Level IP55
Material ABS, ABS+PC
Flame Retardant Performance Non-flame retardant
PLC Splitter Type Mini PLC Splitter
Dimension (L*W*D, MM) 172*288*103
Inner Box Size (MM) 300*200*115
Outer Box Size (MM) 590*315*415
Weight (KG) 1
Gross Weight (KG) 10
PCS/Carton 10
Product Overview

ZION COMMUNICATION Model No. ZCFTB-16D-1 serves as the termination point in FTTX networks, connecting drop cables with feeder cables to accommodate at least 16 users. This terminal box provides adequate space for splicing, splitting, storage, and cable management operations.

Product Images
16 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for FTTX Networks 2 16 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for FTTX Networks 3 16 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for FTTX Networks 4
Packaging Information
  • Plastic bag size: 172*288*103mm
  • Inner box with single corrugated size: 300*200*115mm
  • Carton with double corrugated size: 590*315*415mm (10PCS/Box)
  • Weight per carton: 10KG
Transportation and Storage Guidelines

Avoid exposure to rain, direct sunlight, and compression during transportation. Products should be stored in warehouses protected from moisture, sunlight, and fire sources. The recommended storage temperature range is from 25℃ to +40℃.

Note: Special components that are susceptible to damage during transit should be carefully protected.
