Fiber Optical Terminal Box with 16 HUAWEI Preconnect Ports, PP+Glass Fiber Material, and IP68 Protection Level

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCFTB-16C-3（7232027）

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	Black	Capacity:	16 HUAWEI Preconnect Port
Material:	PP+Glass Fiber	PLC Splitter Type:	Mini PLC Splitter
Dimension(LWD,MM):	380243152	Weight(KG):	5.2
Highlight:	fiber optical terminal box , fiber termination box

Product Description

Fiber Optical Terminal Box ZCFTB-16C-3 (7232027)

4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX

Technical Specifications

Model No.	ZCFTB-16C-3(7232027)
Color	Black
Capacity	16 HUAWEI preconnect Port
Protection Level	IP68
Material	PP+Glass Fiber
Flame retardant performance	Non-flame retardant
PLC splitter Type	Mini PLC Splitter
Dimension (LWD, MM)	380243152
Inner box size (MM)	410250182
Outer box size (MM)	515425385
Weight (KG)	5.2
Gross weight (KG)	21.5
PCS/Carton	4

Product Overview

ZION COMMUNICATION Model No. ZCFTB-16C-3 serves as the termination point in Fttx networks, connecting drop cables with feeder cables to accommodate at least 16 users. This terminal box provides adequate space for splicing, splitting, storage, and cable management operations.

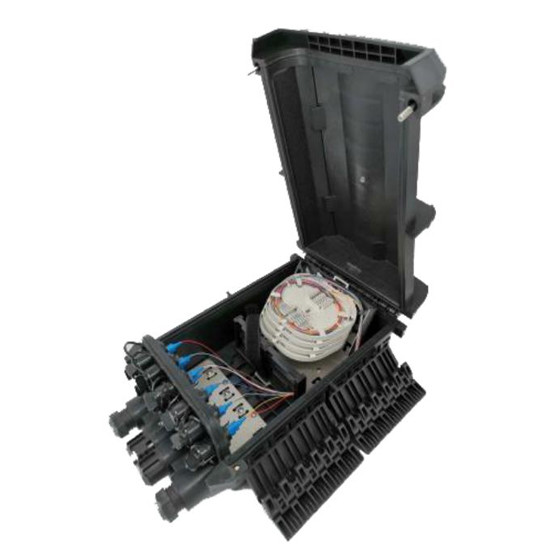

Product Images

Packaging Information

Plastic bag size: 380*243*152mm
Inner box with single corrugated size: 410*250*182mm
Carton with double corrugated size: 515*425*385mm (4PCS/Box)
Weight per carton: 21.5KG

Transportation and Storage Guidelines

Avoid exposure to rain, direct sunlight, and physical compression during transportation. Store products in warehouse conditions that prevent moisture accumulation, direct sun exposure, and fire hazards. Maintain storage temperature between 25℃ and +40℃.

Note: Special components susceptible to damage during transit require careful protective packaging.
