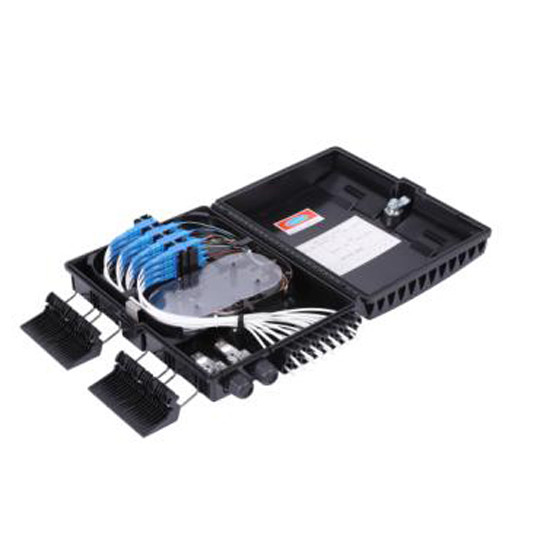

16 Core Fiber Optical Terminal Box with IP55 Protection and Mini PLC Splitter for Fttx Networks

16 Core Fiber Optical Terminal Box with IP55 Protection and Mini PLC Splitter for Fttx Networks
16 Core Fiber Optical Terminal Box with IP55 Protection and Mini PLC Splitter for Fttx Networks
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCFTB-16B-1（7232024）
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: Black, White.. Capacity: 16 Core
Material: PC+ABS, ABS PLC Splitter Type: Mini PLC Splitter
Dimension(L*W*D,MM): 311*237*104 Weight(KG): 1.5
Highlight:

fiber optical terminal box

,

termination box for fiber optic cable

Product Description

Fiber Optical Terminal Box ZCFTB-16B-1
4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX
Inquire Now 16 Core Fiber Optical Terminal Box with IP55 Protection and Mini PLC Splitter for Fttx Networks 0
Technical Specifications
Model No. ZCFTB-16B-1(7232024) 16 Core Fiber Optical Terminal Box with IP55 Protection and Mini PLC Splitter for Fttx Networks 1
Color Black, White
Capacity 16 cores
Protection Level IP55
Material PC+ABS, ABS
Flame Retardant Performance Non-flame retardant
PLC Splitter Type Mini PLC Splitter
Dimension (L*W*D, MM) 311*237*104
Inner Box Size (MM) 320*240*115
Outer Box Size (MM) 605*335*495
Weight (KG) 1.5
Gross Weight (KG) 16.5
PCS/Carton 10
Product Overview
ZION COMMUNICATION Model No. ZCFTB-16B-1 connects drop cable with feeder cable as the termination point in FTTX networks, capable of meeting at least 16 user requirements. Provides suitable space for splicing, splitting, storage and management operations.
Dimension Diagrams
Top View
16 Core Fiber Optical Terminal Box with IP55 Protection and Mini PLC Splitter for Fttx Networks 2
Side View
16 Core Fiber Optical Terminal Box with IP55 Protection and Mini PLC Splitter for Fttx Networks 3
Front View
16 Core Fiber Optical Terminal Box with IP55 Protection and Mini PLC Splitter for Fttx Networks 4
Product Images
16 Core Fiber Optical Terminal Box with IP55 Protection and Mini PLC Splitter for Fttx Networks 5 16 Core Fiber Optical Terminal Box with IP55 Protection and Mini PLC Splitter for Fttx Networks 6 16 Core Fiber Optical Terminal Box with IP55 Protection and Mini PLC Splitter for Fttx Networks 7 16 Core Fiber Optical Terminal Box with IP55 Protection and Mini PLC Splitter for Fttx Networks 8
Packaging Information
  • Plastic bag size: 311*237*104mm
  • Inner box with single corrugated size: 320*240*115mm
  • Carton with double corrugated size: 605*335*495mm (10PCS/Box)
  • Weight per carton: 16.5KG
Transportation and Storage
Avoid rain, sun exposure, and squeezing during transportation. Products should be stored in warehouses avoiding moisture, sun, and fire. Storage temperature should be maintained between 25℃ and +40℃.
Special parts that are easily damaged during transportation should be protected carefully.
