12 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Network

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCFTB-12F-1（7232023）

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	White、Black	Capacity:	12 Core
Material:	ABS、ABS+PC	PLC Splitter Type:	Mini PLC Splitter
Dimension(LWD,MM):	26820282	Weight(KG):	1.1
Highlight:	fiber optical terminal box , termination box for fiber optic cable

Product Description

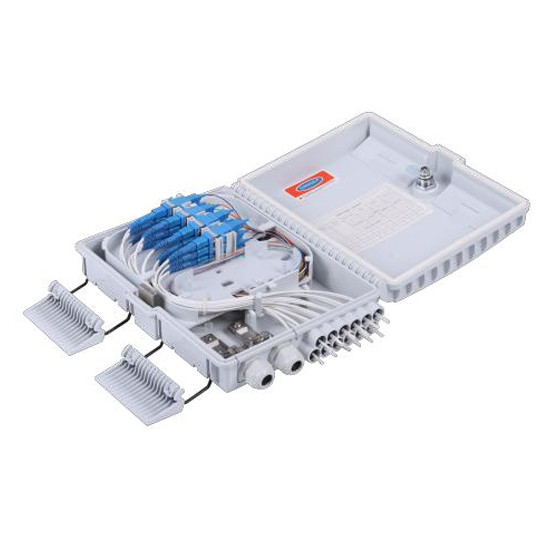

Fiber Optical Terminal Box - ZCFTB-12F-1 (7232023)

ZION COMMUNICATION Model ZCFTB-12F-1 serves as the termination point in FTTX networks, connecting drop cables with feeder cables to accommodate at least 12 users. This terminal box provides optimal space for splicing, splitting, storage, and cable management operations.

Product Overview

Available in 4/8/12/16/24/48/96 core configurations with IP55 to IP68 protection ratings. Constructed from ABS, ABS+PC, or PP+glassfiber materials with Mini/Module PLC Splitter compatibility.

Inquire Now 12 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Network 0

Technical Specifications

Model No.	ZCFTB-12F-1(7232023)
Color	White, Black
Capacity	12 core
Protection Level	IP55
Material	ABS, ABS+PC
Flame Retardant Performance	Non-flame retardant
PLC Splitter Type	Mini PLC Splitter
Dimension (LWD, MM)	26820282
Inner Box Size (MM)	275210105
Outer Box Size (MM)	565435560
Weight (KG)	1.1
Gross Weight (KG)	22.3
PCS/Carton	20

Packaging Information

Plastic bag size: 268*202*82mm
Inner box with single corrugated size: 275*210*105mm
Carton with double corrugated size: 565*435*560mm (20PCS/Box)
Weight per carton: 22.3KG

Transportation and Storage

Avoid rain, sun exposure, and squeezing during transportation. Products should be stored in warehouses avoiding moisture, sun, and fire sources. Storage temperature should be maintained between 25℃ and +40℃.

Note: Special parts that are easily damaged during transportation should be protected carefully.
