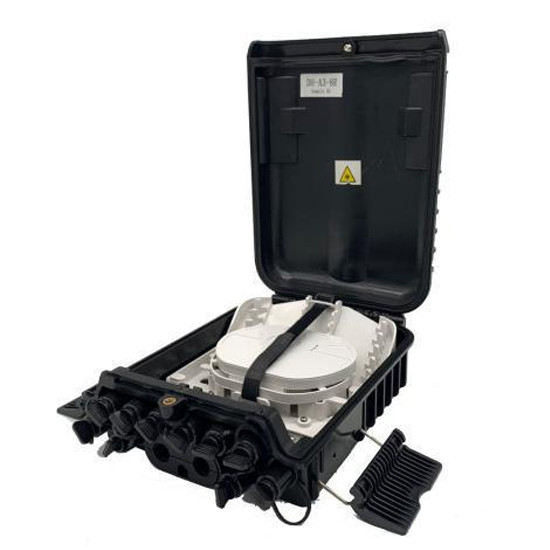

Fiber Optical Terminal Box with 10 HUAWEI Preconnect Ports, ABS+PC Material, and Mini PLC Splitter for Fttx Networks

Fiber Optical Terminal Box with 10 HUAWEI Preconnect Ports, ABS+PC Material, and Mini PLC Splitter for Fttx Networks
Fiber Optical Terminal Box with 10 HUAWEI Preconnect Ports, ABS+PC Material, and Mini PLC Splitter for Fttx Networks
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCFTB-10A-1（7232021）
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: White、Black Capacity: 10 HUAWEI Preconnect Port
Material: ABS、ABS+PC PLC Splitter Type: Mini PLC Splitter
Dimension(L*W*D,MM): 285*210*85 Weight(KG): 1.35
Highlight:

fiber optical terminal box

,

termination box for fiber optic cable

Product Description

Fiber Optical Terminal Box ZCFTB-10A-1 (7232021)

High-performance fiber optical terminal box designed for FTTx networks with 4/8/12/16/24/48/96 cores capacity and IP55 to IP68 protection ratings. Available in ABS, ABS+PC, and PP+glassfiber materials with Mini/Module PLC Splitter options.

Fiber Optical Terminal Box with 10 HUAWEI Preconnect Ports, ABS+PC Material, and Mini PLC Splitter for Fttx Networks 0
Technical Specifications
Model No. ZCFTB-10A-1(7232021)
Color White, Black
Capacity 10 HUAWEI preconnect Port
Protection Level IP55
Material ABS, ABS+PC
Flame Retardant Performance Non-flame retardant
PLC Splitter Type Mini PLC Splitter
Dimension (L*W*D, MM) 285*210*85
Inner Box Size (MM) 290*215*90
Outer Box Size (MM) 445*315*465
Weight (KG) 1.35
Gross Weight (KG) 14.5
PCS/Carton 10
Product Overview

ZION COMMUNICATION Model ZCFTB-10A-1 serves as the termination point in FTTx networks, connecting drop cables with feeder cables to accommodate at least 16 users. The terminal box provides optimal space for splicing, splitting, storage, and cable management operations.

Product Images
Fiber Optical Terminal Box with 10 HUAWEI Preconnect Ports, ABS+PC Material, and Mini PLC Splitter for Fttx Networks 1 Fiber Optical Terminal Box with 10 HUAWEI Preconnect Ports, ABS+PC Material, and Mini PLC Splitter for Fttx Networks 2 Fiber Optical Terminal Box with 10 HUAWEI Preconnect Ports, ABS+PC Material, and Mini PLC Splitter for Fttx Networks 3
Packaging Information
  • Plastic bag size: 285*210*85mm
  • Inner box with single corrugated size: 290*215*90mm
  • Carton with double corrugated size: 445*315*465mm (10PCS/Box)
  • Weight per carton: 14.5KG
Transportation and Storage Guidelines
  • Avoid raining, sun exposure, and squeezing during transportation
  • Store products in warehouse avoiding moisture, sun, and fire
  • Storage temperature range: 25℃ to +40℃
  • Special parts that are easily damaged during transportation should be protected carefully
Related Fiber Optical Terminal Box Products
Fiber Optical Terminal Box with 10 HUAWEI Preconnect Ports, ABS+PC Material, and Mini PLC Splitter for Fttx Networks 4
ZCFTB-04A-1 (7232001)
4-port terminal box for optical components
Fiber Optical Terminal Box with 10 HUAWEI Preconnect Ports, ABS+PC Material, and Mini PLC Splitter for Fttx Networks 5
ZCFTB-24A-1 (7232002)
24-port terminal box for optical components
Fiber Optical Terminal Box with 10 HUAWEI Preconnect Ports, ABS+PC Material, and Mini PLC Splitter for Fttx Networks 6
ZCFTB-144A-1 (7232003)
144-port terminal box for optical components
