Detail Information

Color:	White、Black	Capacity:	8 Core
Material:	ABS、ABS+PC	PLC Splitter Type:	Mini PLC Splitter
Dimension(LWD,MM):	24920353	Weight(KG):	0.7
Highlight:	fiber optical terminal box , termination box for fiber optic cable

Product Description

Fiber Optical Terminal Box

4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX

Technical Index

Model No.			ZCFTB-08I-1(7232017)
Color			White,Black
Capacity			8 core
Protection Level			IP55
Material			ABS,ABS+PC
Flame retardant performance			Non-flame retardant
PLC splitter Type			Mini PLC Splitter
Dimension(LWD,MM)			24920353
Inner box size(MM)			25021065
Outer box size(MM)			525445370
Weight(KG)			0.7
Gross weight(KG)			15
PCS/Carton			20

Overview

ZION COMMUNICATION Model No. ZCFTB-08I-1 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 8 users requirements. It can help splicing, splitting, storage and management with suitable space.

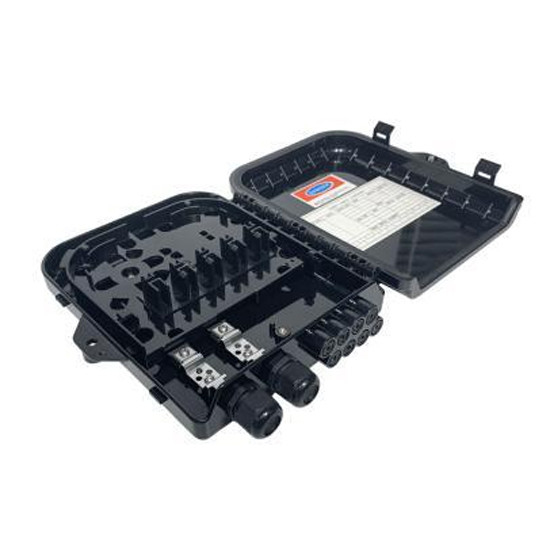

Pictures for reference

Fiber Optical Terminal Box-ZCFTB-08I-1（7232017） 2

Products Information

· Plastic bag size: 249*203*53mm

· Inner box with single corrugated size: 250*210*65mm

· Carton with double corrugated size: 525*445*370mm(20PCS/Box)

· Weight per carton:15KG

Transportation and storage

· Avoid raining, sun exposuring and squeezing during transportation

· Products should be stored in the warehouse avoiding moisture, sun, fire.
The storage temperature should be from 25℃～+40℃

Note: Special parts that are easily damaged during transportation should be protected carefully.
