8 Core Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Network

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCFTB-08H-1（7232015）

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	White、Black	Capacity:	8 Core
Material:	ABS、ABS+PC	PLC Splitter Type:	Mini PLC Splitter
Dimension(LWD,MM):	24920353	Weight(KG):	0.7
Highlight:	fiber optical terminal box , termination box for fiber optic cable

Product Description

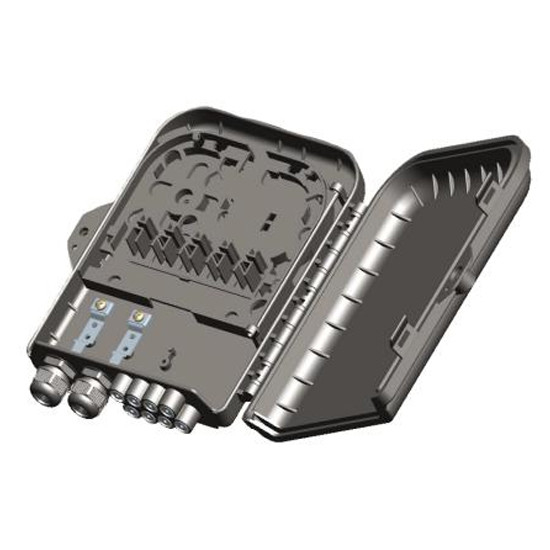

Fiber Optical Terminal Box - ZCFTB-08H-1 (7232015)

4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX

Technical Specifications

Model No.	ZCFTB-08H-1(7232015)
Color	White, Black
Capacity	8 core
Protection Level	IP55
Material	ABS, ABS+PC
Flame Retardant Performance	Non-flame retardant
PLC Splitter Type	Mini PLC Splitter
Dimension (LWD, MM)	24920353
Inner Box Size (MM)	25021065
Outer Box Size (MM)	525445370
Weight (KG)	0.7
Gross Weight (KG)	15
PCS/Carton	20

Product Overview

ZION COMMUNICATION Model No. ZCFTB-08H-1 connects drop cable with feeder cable as the termination point in FTTX networks, capable of meeting at least 8 user requirements. Provides suitable space for splicing, splitting, storage and management of fiber optic connections.

Packaging Information

Plastic bag size: 249*203*53mm
Inner box with single corrugated size: 250*210*65mm
Carton with double corrugated size: 525*445*370mm (20PCS/Box)
Weight per carton: 15KG

Transportation and Storage

Avoid rain, sun exposure and squeezing during transportation. Products should be stored in warehouses avoiding moisture, sun, and fire. Storage temperature should be maintained between 25℃ and +40℃.

Note: Special parts that are easily damaged during transportation should be protected carefully.
