8 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Networks

8 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Networks
8 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Networks
8 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Networks
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCFTB-08G-1（7232014）
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: White、Grey Capacity: 8 Core
Material: ABS、ABS+PC PLC Splitter Type: /
Dimension(L*W*D,MM): 233*172*49 Weight(KG): 0.55
Highlight:

fiber optical terminal box

,

termination box for fiber optic cable

Product Description

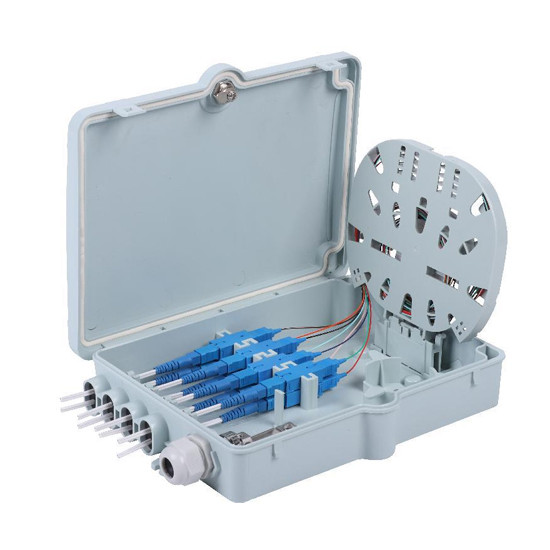

Fiber Optical Terminal Box ZCFTB-08G-1 (7232014)
4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX
8 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Networks 0
Technical Specifications
Model No. ZCFTB-08G-1(7232014) 8 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Networks 1
Color White, Grey
Capacity 8 core
Protection Level IP55
Material ABS, ABS+PC
Flame Retardant Performance Non-flame retardant
PLC Splitter Type /
Dimension (L*W*D, MM) 233*172*49
Inner Box Size (MM) 240*180*60
Outer Box Size (MM) 555*495*315
Weight (KG) 0.55
Gross Weight (KG) 17
PCS/Carton 30
Product Overview
ZION COMMUNICATION Model ZCFTB-08G-1 serves as the termination point in FTTX networks, connecting drop cables with feeder cables to accommodate at least 8 users. This terminal box provides adequate space for splicing, splitting, storage, and cable management operations.
Packaging Information
  • Plastic bag size: 233*172*49mm
  • Inner box with single corrugated size: 240*180*60mm
  • Carton with double corrugated size: 555*495*315mm (30PCS/Box)
  • Weight per carton: 17KG
Transportation and Storage Guidelines
  • Avoid exposure to rain, direct sunlight, and physical compression during transportation
  • Store products in warehouse conditions protected from moisture, sunlight, and fire sources
  • Recommended storage temperature range: 25℃ to +40℃
  • Special components susceptible to damage should receive additional protective packaging
