8 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Networks

8 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Networks
8 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Networks
8 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Networks
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCFTB-08F-2（7232013）
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: White、Black Capacity: 8 Core
Material: ABS、ABS+PC PLC Splitter Type: Module Box PLC Splitter
Dimension(L*W*D,MM): 268*202*82 Weight(KG): 1.1
Highlight:

fiber optical terminal box

,

termination box for fiber optic cable

Product Description

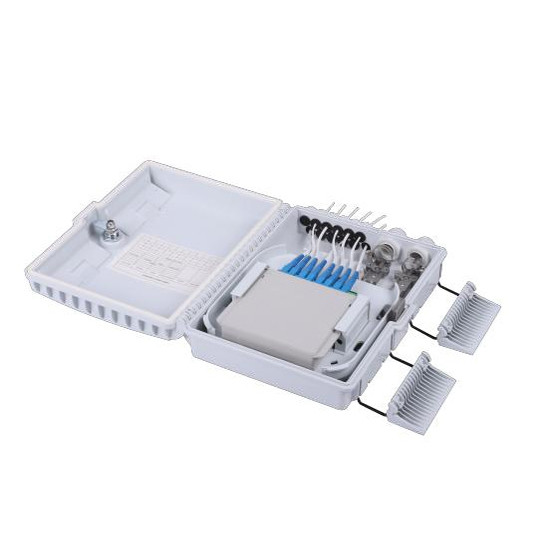

Fiber Optical Terminal Box ZCFTB-08F-2 (7232013)
Connect drop cable with feeder cable as the termination point in FTTX networks, capable of serving at least 8 users. Provides space for splicing, splitting, storage, and cable management.
Technical Specifications
Model Number ZCFTB-08F-2 (7232013)
Color White, Black
Capacity 8 core
Protection Level IP55
Material ABS, ABS+PC
Flame Retardant Performance Non-flame retardant
PLC Splitter Type Module Box PLC splitter
Dimensions (L×W×D, mm) 268×202×82
Inner Box Size (mm) 275×210×105
Outer Box Size (mm) 565×435×560
Weight (kg) 1.1
Gross Weight (kg) 22.3
Units per Carton 20
Product Overview
The ZION COMMUNICATION ZCFTB-08F-2 fiber optical terminal box serves as the termination point in FTTX networks, connecting drop cables with feeder cables. This 8-core solution provides adequate space for splicing, splitting, storage, and cable management to meet connectivity requirements for multiple users.
Product Images
8 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Networks 0 8 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Networks 1 8 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Networks 2
Packaging Information
  • Plastic bag size: 268×202×82mm
  • Inner box with single corrugated size: 275×210×105mm
  • Carton with double corrugated size: 565×435×560mm (20 units per box)
  • Weight per carton: 22.3kg
Transportation and Storage Guidelines
Avoid exposure to rain, direct sunlight, and physical compression during transportation. Store products in warehouse conditions avoiding moisture, sunlight, and fire sources. Recommended storage temperature range: 25℃ to +40℃.
Special components susceptible to damage during transit should be carefully protected.
