Fiber Optical Terminal Box with 8 Core Capacity ABS+PC Material and IP55 Protection for Fttx Networks

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCFTB-08E-2（7232012）

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	White、Black	Capacity:	8 Core
Material:	ABS、ABS+PC	PLC Splitter Type:	Module Box PLC Splitter
Dimension(LWD,MM):	21222055	Weight(KG):	0.65
Highlight:	fiber optical terminal box , termination box for fiber optic cable

Product Description

Fiber Optical Terminal Box - ZCFTB-08E-2 (7232012)

4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX

Technical Specifications

Model No.	ZCFTB-08E-2(7232012)
Color	White, Black
Capacity	8 core
Protection Level	IP55
Material	ABS, ABS+PC
Flame retardant performance	Non-flame retardant
PLC splitter Type	Module Box PLC splitter
Dimension (LWD, MM)	21222055
Inner box size (MM)	24018060
Outer box size (MM)	475455340
Weight (KG)	0.65
Gross weight (KG)	13.5
PCS/Carton	20

Product Overview

ZION COMMUNICATION Model No. ZCFTB-08E-2 serves as the termination point in Fttx networks, connecting drop cables with feeder cables to accommodate at least 8 users. This terminal box provides optimal space for splicing, splitting, storage, and cable management operations.

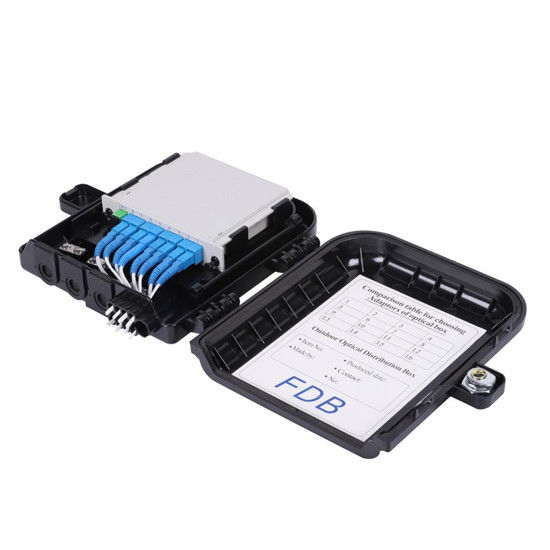

Product Images

Packaging Information

Plastic bag size: 212*220*55mm
Inner box with single corrugated size: 240*180*60mm
Carton with double corrugated size: 475*455*340mm (20PCS/Box)
Weight per carton: 13.5 KG

Transportation and Storage Guidelines

Avoid exposure to rain, direct sunlight, and compression during transportation
Store products in warehouses protected from moisture, sunlight, and fire
Recommended storage temperature: 25℃ to +40℃
Special components susceptible to damage should be carefully protected during transit
