Detail Information

Color:	White、Black	Capacity:	8 Core
Material:	ABS、ABS+PC	PLC Splitter Type:	/
Dimension(LWD,MM):	21222055	Weight(KG):	0.65
Highlight:	fiber optical terminal box , termination box for fiber optic cable

Product Description

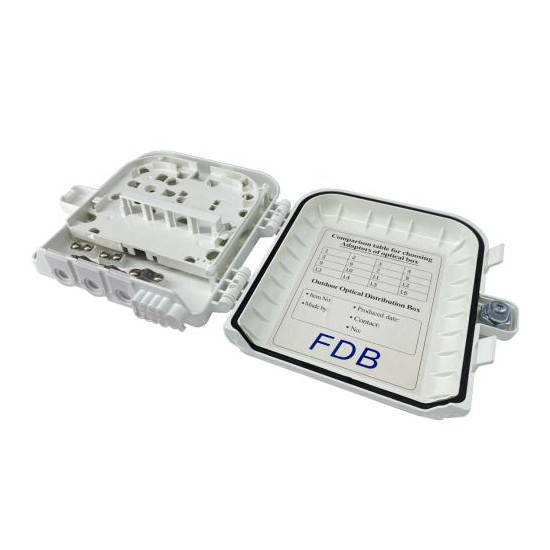

Fiber Optical Terminal Box

4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX

Technical Index

Model No.			ZCFTB-08E-1(7232011)
Color			White,Black
Capacity			8 core
Protection Level			IP55
Material			ABS,ABS+PC
Flame retardant performance			Non-flame retardant
PLC splitter Type			/
Dimension(LWD,MM)			21222055
Inner box size(MM)			22023065
Outer box size(MM)			475455340
Weight(KG)			0.65
Gross weight(KG)			13.5
PCS/Carton			20

Overview

ZION COMMUNICATION Model No. ZCFTB-08E-1 can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 8 users requirements. It can help splicing, splitting, storage and management with suitable space.

Products Information

· Plastic bag size: 212*220*55mm

· Inner box with single corrugated size: 220*230*65mm

· Carton with double corrugated size: 475*455*340mm( 20PCS/Box)

· Weight per carton:13.5 KG

Transportation and storage

· Avoid raining, sun exposuring and squeezing during transportation

· Products should be stored in the warehouse avoiding moisture, sun, fire.
The storage temperature should be from 25℃～+40℃

Note: Special parts that are easily damaged during transportation should be protected carefully.

	Fiber Optical Terminal Box-ZCFTB-04A-1(7232001)	Fiber Optical Terminal Box, Optical Components
	Fiber Optical Terminal Box-ZCFTB-24A-1(7232002)	Fiber Optical Terminal Box, Optical Components
	Fiber Optical Terminal Box-ZCFTB-144A-1(7232003)	Fiber Optical Terminal Box, Optical Components
	Fiber Optical Terminal Box-ZCFTB-06A-1(7232004)	Fiber Optical Terminal Box, Optical Components
	Fiber Optical Terminal Box-ZCFTB-08A-1(7232005)	Fiber Optical Terminal Box, Optical Components
	Fiber Optical Terminal Box-ZCFTB-08A-2(7232006)	Fiber Optical Terminal Box, Optical Components
	Fiber Optical Terminal Box-ZCFTB-08B-2(7232007)	Fiber Optical Terminal Box, Optical Components
	Fiber Optical Terminal Box-ZCFTB-08C-1(7232008)	Fiber Optical Terminal Box, Optical Components

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCFTB-08E-1（7232011）

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Fiber Optical Terminal Box-ZCFTB-08E-1（7232011）
