8 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Networks

8 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Networks
8 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Networks
8 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Networks
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCFTB-08B-2（7232007）
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: White、Black Capacity: 8 Core
Material: ABS、ABS+PC PLC Splitter Type: Module Box PLC Splitter
Dimension(L*W*D,MM): 233*213*68 Weight(KG): 0.75
Highlight:

fiber optical terminal box

,

termination box for fiber optic cable

Product Description

Fiber Optical Terminal Box - ZCFTB-08B-2 (7232007)
Product Overview

ZION COMMUNICATION Model ZCFTB-08B-2 serves as the termination point in FTTX networks, connecting drop cables with feeder cables to accommodate at least 8 users. This terminal box provides optimal space for splicing, splitting, storage, and cable management operations.

Key Features
  • Available in 4/8/12/16/24/48/96 core configurations
  • IP55 to IP68 protection rating
  • Constructed from ABS, ABS+PC, or PP+glassfiber materials
  • Mini/Module PLC Splitter compatibility
  • Compact and durable design for various installation environments
Technical Specifications
Model Number ZCFTB-08B-2 (7232007)
Color Options White, Black
Capacity 8 core
Protection Level IP55
Material ABS, ABS+PC
Flame Retardant Performance Non-flame retardant
PLC Splitter Type Module Box PLC splitter
Dimensions (L×W×D, mm) 233×213×68
Inner Box Size (mm) 240×220×75
Outer Box Size (mm) 455×495×390
Weight (kg) 0.75
Gross Weight (kg) 16
Units per Carton 20
Packaging Information
  • Plastic bag size: 233×213×68mm
  • Inner box with single corrugated size: 240×220×75mm
  • Carton with double corrugated size: 455×495×390mm (20 units per box)
  • Weight per carton: 16kg
Transportation & Storage Guidelines

Avoid exposure to rain, direct sunlight, and excessive pressure during transportation. Store products in a warehouse protected from moisture, sunlight, and fire sources. Maintain storage temperature between 25℃ and +40℃. Special components susceptible to damage should be carefully protected during transit.

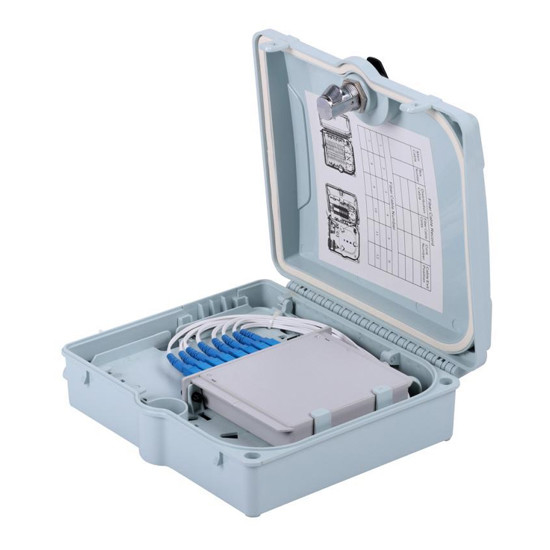

Product Image
