8 Core Fiber Optical Terminal Box with ABS+PC Material and IP55 Protection for Fttx Networks

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCFTB-08A-2（7232006）

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	White、Black	Capacity:	8 Core
Material:	ABS、ABS+PC	PLC Splitter Type:	Module Box PLC Splitter
Dimension(LWD,MM):	22522055	Weight(KG):	0.65
Highlight:	fiber optical terminal box , termination box for fiber optic cable

Product Description

Fiber Optical Terminal Box - ZCFTB-08A-2 (7232006)

Product Overview

The ZION COMMUNICATION Model ZCFTB-08A-2 serves as the termination point in FTTx networks, connecting drop cables with feeder cables to accommodate at least 8 users. This terminal box provides optimal space for splicing, splitting, storage, and cable management operations.

Available in 4/8/12/16/24/48/96 cores

IP55 to IP68 protection ratings

Constructed from ABS, ABS+PC, or PP+glassfiber materials

Compatible with Mini/Module PLC Splitters

Technical Specifications

Model No.	ZCFTB-08A-2 (7232006)
Color	White, Black
Capacity	8 core
Protection Level	IP55
Material	ABS, ABS+PC
Flame Retardant Performance	Non-flame retardant
PLC Splitter Type	Module Box PLC splitter
Dimension (LWD, MM)	22522055
Inner Box Size (MM)	23523065
Outer Box Size (MM)	475485340
Weight (KG)	0.65
Gross Weight (KG)	13.5
PCS/Carton	20

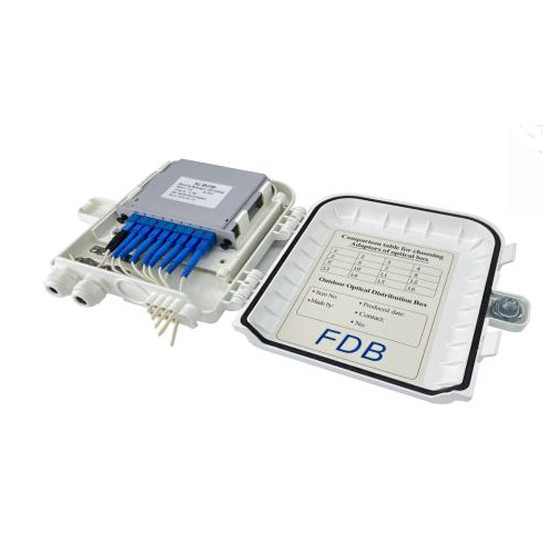

Product Images

Packaging Information

Plastic bag size: 225*220*55mm
Inner box with single corrugated size: 235*230*65mm
Carton with double corrugated size: 475*485*340mm (20PCS/Box)
Weight per carton: 13.5 KG

Transportation and Storage Guidelines

Avoid exposure to rain, direct sunlight, and excessive pressure during transportation. Products should be stored in warehouses protected from moisture, sunlight, and fire sources. The recommended storage temperature range is from 25℃ to +40℃.

Note: Special components that are susceptible to damage during transit require careful protective measures.
