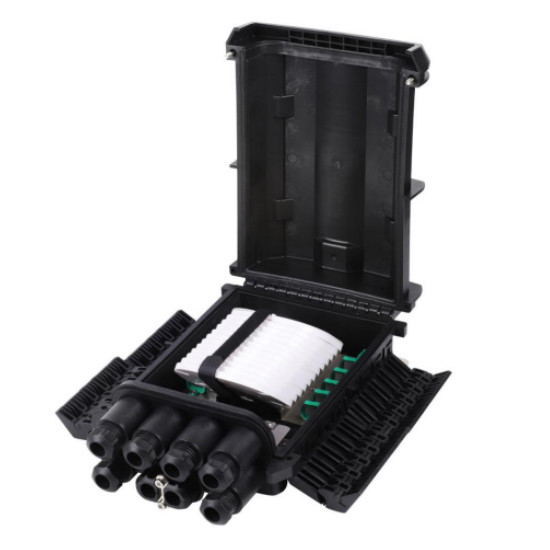

144 Cores Fiber Optical Terminal Box with IP68 Protection and PP+Glassfiber Material for Reliable Fiber Management

144 Cores Fiber Optical Terminal Box with IP68 Protection and PP+Glassfiber Material for Reliable Fiber Management
144 Cores Fiber Optical Terminal Box with IP68 Protection and PP+Glassfiber Material for Reliable Fiber Management
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCFTB-144A-1（7232003）
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: Black Capacity: 144cores
Material: PP+glassfiber PLC Splitter Type: Mini PLC Splitter
Dimension(L*W*D,MM): 380*243*130 Weight(KG): 4.8
Highlight:

fiber optical terminal box

,

termination box for fiber optic cable

Product Description

Fiber Optical Terminal Box - ZCFTB-144A-1 (7232003)
Product Overview

High-capacity fiber optical terminal box designed for FTTx networks, connecting drop cables with feeder cables as termination points. Capable of serving at least 16 users with comprehensive splicing, splitting, storage, and management capabilities.

Inquire Now 144 Cores Fiber Optical Terminal Box with IP68 Protection and PP+Glassfiber Material for Reliable Fiber Management 0
Technical Specifications
Model No. ZCFTB-144A-1 (7232003) 144 Cores Fiber Optical Terminal Box with IP68 Protection and PP+Glassfiber Material for Reliable Fiber Management 1
Color Black
Capacity 144 core
Protection Level IP68
Material PP+glassfiber
Flame Retardant Performance Non-flame retardant
PLC Splitter Type Mini PLC Splitter
Dimension (L*W*D, MM) 380*243*130
Inner Box Size (MM) 410*250*160
Outer Box Size (MM) 515*425*340
Weight (KG) 4.8
Gross Weight (KG) 20
PCS/Carton 4
Product Features

ZION COMMUNICATION Model ZCFTB-144A-1 serves as the termination point in FTTx networks, connecting drop cables with feeder cables. Designed to accommodate at least 16 users with optimized space for splicing, splitting, storage, and cable management.

Product Images
144 Cores Fiber Optical Terminal Box with IP68 Protection and PP+Glassfiber Material for Reliable Fiber Management 2 144 Cores Fiber Optical Terminal Box with IP68 Protection and PP+Glassfiber Material for Reliable Fiber Management 3 144 Cores Fiber Optical Terminal Box with IP68 Protection and PP+Glassfiber Material for Reliable Fiber Management 4
Packaging Information
  • Plastic bag size: 380*243*130mm
  • Inner box with single corrugated size: 410*250*160mm
  • Carton with double corrugated size: 515*425*340mm (4PCS/Box)
  • Weight per carton: 20 KG
Transportation and Storage
  • Avoid raining, sun exposure, and squeezing during transportation
  • Store in warehouse avoiding moisture, sun, and fire
  • Storage temperature range: 25℃ to +40℃
  • Special parts that are easily damaged during transportation should be protected carefully
