24 Cores Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Network

24 Cores Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Network
24 Cores Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Network
24 Cores Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Network
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCFTB-24A-1（7232002）
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: White、Grey Capacity: 24cores
Material: ABS、ABS+PC PLC Splitter Type: Mini PLC Splitter
Dimension(L*W*D,MM): 342*268*102 Weight(KG): 1.5
Highlight:

fiber optical terminal box

,

termination box for fiber optic cable

Product Description

Fiber Optical Terminal Box - ZCFTB-24A-1 (7232002)
4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX
Inquire Now 24 Cores Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Network 0
Technical Specifications
Model No. ZCFTB-24A-1(7232002) 24 Cores Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Network 1
Color White, Grey
Capacity 24 core
Protection Level IP55
Material ABS, ABS+PC
Flame Retardant Performance Non-flame retardant
PLC Splitter Type Mini PLC Splitter
Dimension (L*W*D, MM) 342*268*102
Inner Box Size (MM) 355*280*110
Outer Box Size (MM) 565*370*295
Weight (KG) 1.5
Gross Weight (KG) 8
PCS/Carton 5
Product Overview
ZION COMMUNICATION Model No. ZCFTB-24A-1 serves as the termination point in FTTX networks, connecting drop cables with feeder cables. This terminal box is capable of meeting at least 16 user requirements and provides adequate space for splicing, splitting, storage, and cable management.

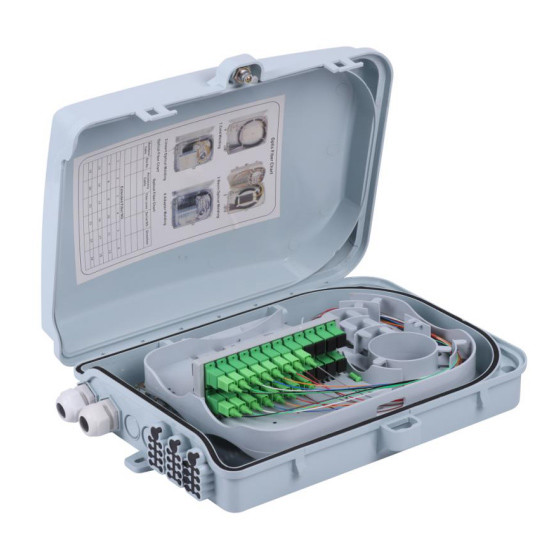

Product Images
24 Cores Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Network 2 24 Cores Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Network 3 24 Cores Fiber Optical Terminal Box with ABS+PC Material and Mini PLC Splitter for Fttx Network 4
Packaging Information
  • Plastic bag size: 342*268*102mm
  • Inner box with single corrugated size: 355*280*110mm
  • Carton with double corrugated size: 565*370*295mm (5PCS/Box)
  • Weight per carton: 8 KG
Transportation and Storage Guidelines
  • Avoid exposure to rain, direct sunlight, and compression during transportation
  • Store products in warehouse conditions avoiding moisture, sunlight, and fire sources
  • Recommended storage temperature: -25℃ to +40℃
  • Special components that are easily damaged during transit should be carefully protected
