144 Cores IP68 Fiber Optic Splice Closure with Mechanical Seal for Outdoor Cable Protection

ZION COMMUNICATION Model ZCSC-S144-01 is a primary equipment unit for user access points, designed for protective connection and distribution between two or more fiber optic cables. Its main function is to connect distribution cables with indoor cables in outdoor environments. Widely used in communication systems, cable TV networks, and optical cable network systems, this closure features a stable structure, excellent sealing performance, and easy installation.

• Complies with appearance and structure requirements of YD/T 590.2-2005, YD/T 778-2011
• Meets transportation test requirements of YD/T778-2011
• Conforms to technical requirements for plastic parts per CB 867-83
• IP68 protection level certified
• Packaging meets GB3873-1993 communication equipment standards
• Flame retardant performance: non-flame retardant

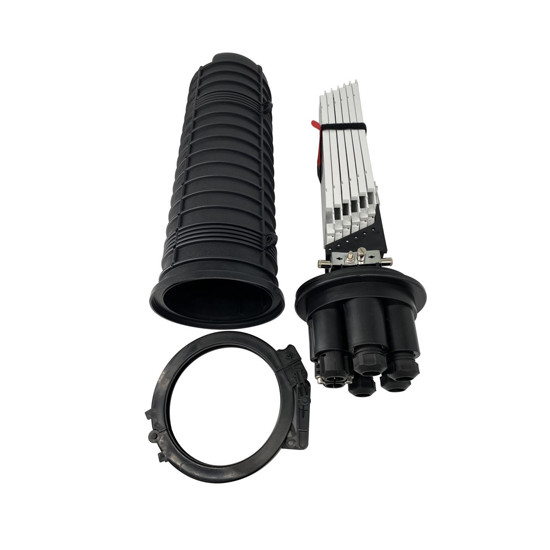

Includes box bottom, box cover, cable holder, strengthening cable part holder, splice tray, transparent splice tray cover, cable ties, splice tray mounting plate, box body sealing components, box hoop, and other accessories.

Packaging: Inner box: 550×220×190mm, Outer box: 455×395×565mm (4 units per carton)

Transportation & Storage: Protect from rain, direct sunlight, and compression during transport. Store in dry warehouse away from moisture, sunlight, and fire sources. Recommended storage temperature: 25℃ to +40℃. Handle delicate components with care during shipping.

Aerial Mounting: Utilizes hanger and steel wire suspension system.

Pole Mounting: Uses fixed plate, mounting plate, and U-bolt for telephone pole attachment.
