96 Cores IP68 Mechanical Seal Fiber Optic Splice Closure for Outdoor Cable Protection

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCSC-S096-02(7231214)

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	Black	Capacity:	96cores
Material:	PP、PC，PC+ABS	Inlet/outlet:	2+4
Dimension(MM):	420*Ф135
Highlight:	fiber optic splice closure , fiber splice enclosure

Product Description

Fiber Optic Vertical Splice Closure - ZCSC-S096-02(7231214)

24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE

Technical Specifications

Model No.	ZCSC-S096-02(7231214)
Color	Black
Capacity	96 cores
Protection Level	IP68
Material	PP, PC, PC+ABS
Sealing Method For Inlets	Mechanical seal
Inlet/outlet	2+4
Inlet cable Dia	Ф8-Ф18
Outlet cable Dia	Ф8-Ф18
Relative humidity	≤95%(＋30℃)
Atmospheric pressure	62～101kPa
Dimension(MM)	420*Ф135
Inner box size(MM)	430220190
Outer box size(MM)	455395445
Per weight(KG)	2.2
Gross weight(KG)	13.5
Pcs/Carton(PCS)	6

Product Overview

ZION COMMUNICATION Model No. ZCSC-S096-02 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It's widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.

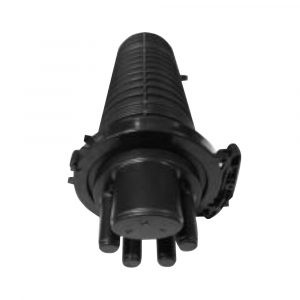

Product Images

Inspection and Testing Standards

Meeting the appearance and structure requirements of 5.2 of YD/T 590.2-2005, YD/T 778-2011
Meeting the transportation test requirements of the 6.9 of YD/T778-2011
Meeting the common technical requirements for plastic parts of CB 867-83
Protection Level: IP68 test
Meeting the common package requirements for communication equipment of GB3873-1993
Flame retardant performance: non-flame retardant

Component Parts

Box bottom, box cover, cable holder, holder for strengthening cable part, splice tray, transparent cover for splice tray, magic cable tie, plate for installing splice tray, sealing part for box body, box hoop and other accessory.

Packaging Information

Inner box size: 430*220*190mm

Outer box size: 455*395*445mm (6 pcs/carton)

Transportation and Storage

Avoid raining, sun exposuring and squeezing during transportation
Products should be stored in the warehouse avoiding moisture, sun, fire
Storage temperature: 25℃～+40℃
Special parts that are easily damaged during transportation should be protected carefully

Installation Methods

Aerial Mounting

1-Fiber optical splice closure 2-Hanger 3-Steel wire

Pole Mounting

1-Fixed plate 2-Mounting plate 3-U-bolt 4-Telephone pole
