Fiber Optic Vertical Splice Closure ZCSC-S048-01
24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE
| Model No. |
ZCSC-S048-01(7231212) |
 |
| Color | Black |
| Capacity | 48 cores |
| Protection Level | IP68 |
| Material | PP, PC, PC+ABS |
| Sealing Method For Inlets | Mechanical seal |
| Inlet/outlet | 2+2 |
| Inlet cable Dia | Ф8-Ф15 |
| Outlet cable Dia | Ф8-Ф15 |
| Relative humidity | ≤95%(＋30℃) |
| Atmospheric pressure | 62～101kPa |
| Dimension(MM) | 300*Ф118 |
| Inner box size(MM) | 310*195*180 |
| Outer box size(MM) | 600*325*555 |
| Per weight(KG) | 1.2 |
| Gross weight(KG) | 12 |
| Pcs/Carton(PCS) | 9 |
Product Overview
ZION COMMUNICATION Model No. ZCSC-S048-01 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It's widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.

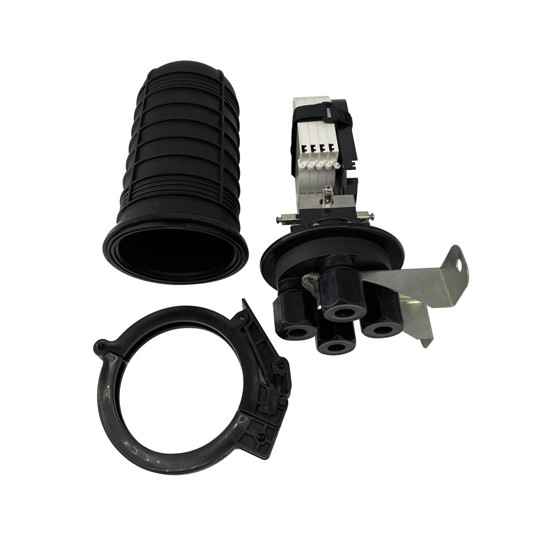

Product Images
Inspection and Testing Standards
- Meeting the appearance and structure requirements of 5.2 of YD/T 590.2-2005, YD/T 778-2011
- Meeting the transportation test requirements of the 6.9 of YD/T778-2011
- Meeting the common technical requirements for plastic parts of CB 867--83
- Protection Level: IP68 test
- Meeting the common package requirements for communication equipment of GB3873-1993
- Flame retardant performance: non-flame retardant
Component Parts
Box bottom, box cover, cable holder, holder for strengthening cable part, splice tray, transparent cover for splice tray, magic cable tie, plate for installing splice tray, sealing part for box body, box hoop and other accessory.
Packaging Specifications
Inner box size: 310*195*180mm
Outer box size: 600*325*555mm (9 pcs/carton)
Transportation and Storage
Avoid raining, sun exposuring and squeezing during transportation. Products should be stored in the warehouse avoiding moisture, sun, fire. The storage temperature should be from 25℃～+40℃
Note: Special parts that are easily damaged during transportation should be protected carefully.
Installation Methods
Aerial Mounting
1-Fiber optical splice closure 2-Hanger 3-Steel wire
1-Fixed plate 2-Mounting plate 3-U-bolt 4-Telephone pole
