288 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems

288 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems
288 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems
288 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCSC-D288-01(7231211)
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: Black Capacity: 288cores
Material: PP、PC，PC+ABS Inlet/outlet: 1+4
Dimension(L*W*D,MM): 485*186*136
Highlight:

fiber optic splice closure

,

fiber splice enclosure

Product Description

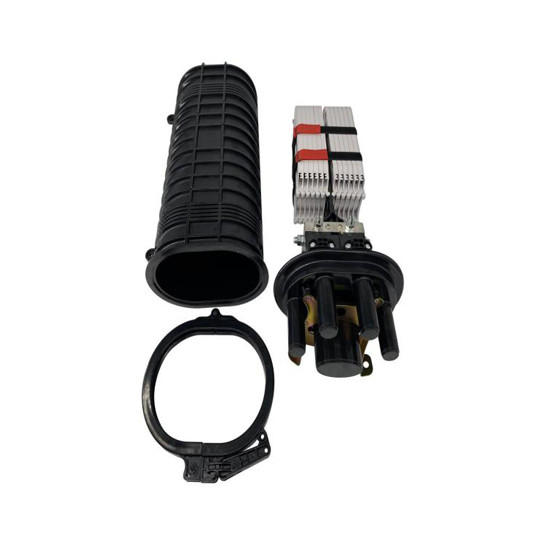

Fiber Optic Vertical Splice Closure - ZCSC-D288-01(7231211)
24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE
Technical Specifications
Model No.ZCSC-D288-01(7231211)
ColorBlack
Capacity288 cores
Protection LevelIP68
MaterialPP, PC, PC+ABS
Sealing Method For InletsHeat-shrink seal
Inlet/outlet1+4
Inlet cable DiaФ14-Ф29
Outlet cable DiaФ9-Ф22
Relative humidity≤95%(＋30℃)
Atmospheric pressure62～101kPa
Dimension(L*W*D,MM)485*186*136
Inner box size(MM)495*215*215
Outer box size(MM)445*445*510
Gross weight(KG)14.5
Pcs/Carton(PCS)4
Product Overview
ZION COMMUNICATION Model No. ZCSC-D288-01 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It's widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
Product Images
288 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 0 288 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 1 288 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 2
Quality Standards & Testing
  • Meets appearance and structure requirements of YD/T 590.2-2005, YD/T 778-2011
  • Passes transportation test requirements of YD/T778-2011
  • Complies with technical requirements for plastic parts per CB 867-83
  • IP68 protection level certified
  • Meets packaging requirements for communication equipment per GB3873-1993
  • Flame retardant performance: non-flame retardant
Packaging Details
Inner box size: 495×215×215mm
Outer box size: 445×445×510mm (4 pcs/carton)
Transportation & Storage
  • Avoid rain, sun exposure, and compression during transportation
  • Store in warehouse avoiding moisture, direct sunlight, and fire
  • Storage temperature range: -25℃ to +40℃
  • Special components require careful protection during transit
Installation Methods
Aerial Mounting
288 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 3
1-Fiber optical splice closure 2-Hanger 3-Steel wire
Pole Mounting
288 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 4
1-Fixed plate 2-Mounting plate 3-U-bolt 4-Telephone pole
Related Fiber Optic Products
288 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 5
ADSS Cable Products
All Dielectric, Stranded Loose tube ADSS Cable
288 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 6
FTTH Drop Cable
FTTH networks covering indoor and outdoor applications
288 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 7
Fiber Optic Splice Closure
24/48/96/144 cores IP55 to IP68 splice closures
