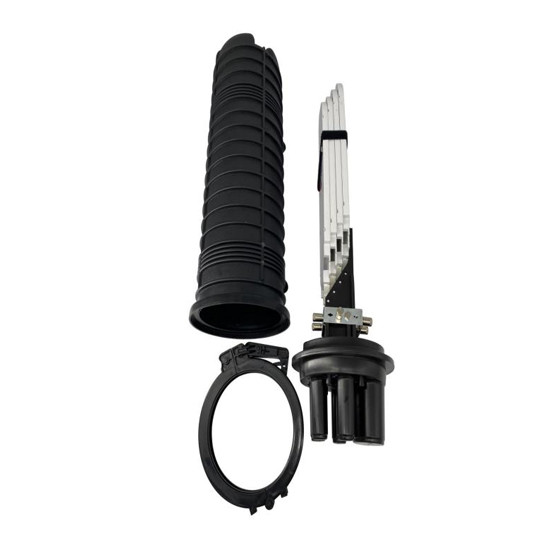

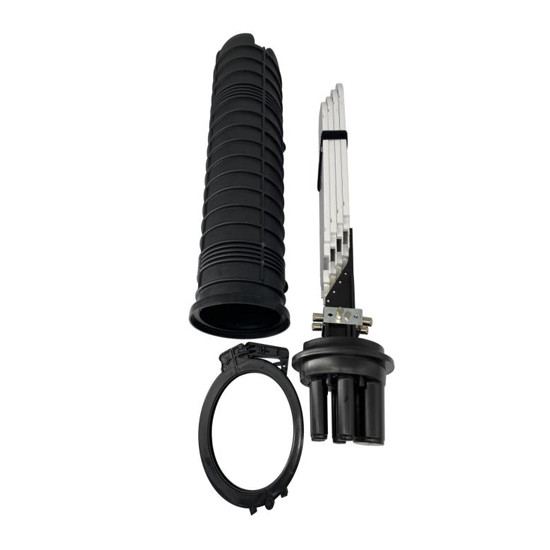

144 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Protective Cable Connection

24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE

ZION COMMUNICATION Model No. ZCSC-D144-01 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It's widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.

Box bottom, box cover, cable holder, holder for strengthening cable part, splice tray, transparent cover for splice tray, magic cable tie, plate for installing splice tray, sealing part for box body, box hoop and other accessory.

Inner box size: 550*230*210mm

Outer box size: 645*475*565mm (6pcs/carton)

Avoid raining, sun exposuring and squeezing during transportation. Products should be stored in the warehouse avoiding moisture, sun, fire. The storage temperature should be from 25℃～+40℃

Note: Special parts that are easily damaged during transportation should be protected carefully

1-Fiber optical splice closure 2-Hanger 3-Steel wire

1- Fixed plate 2- Mounting plate 3-U-bolt 4-telephone pole
