96 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Cable Protection

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCSC-D096-03(7231208)

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	Black	Capacity:	96 Cores
Material:	PP、PC，PC+ABS	Inlet/outlet:	1+4
Dimension(LWD,MM):	430*Ф143
Highlight:	fiber optic splice closure , fiber splice enclosure

Product Description

Fiber Optic Vertical Splice Closure ZCSC-D096-03

24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE

Technical Specifications

Model No.	ZCSC-D096-03(7231208)
Color	Black
Capacity	96 cores
Protection Level	IP68
Material	PP, PC, PC+ABS
Sealing Method For Inlets	Heat-shrink seal
Inlet/outlet	1+4
Inlet cable port	Ф11-Ф28
Outlet cable port	Ф8-Ф21
Dimension (LWD, MM)	430*Ф143
Inner box size (MM)	440235190
Outer box size (MM)	585485455

Dimension Diagrams

Pic#1: Top View

Pic#2: Side View

Pic#3: Front View

Product Overview

ZION COMMUNICATION Model No. ZCSC-D096-03 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It's widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.

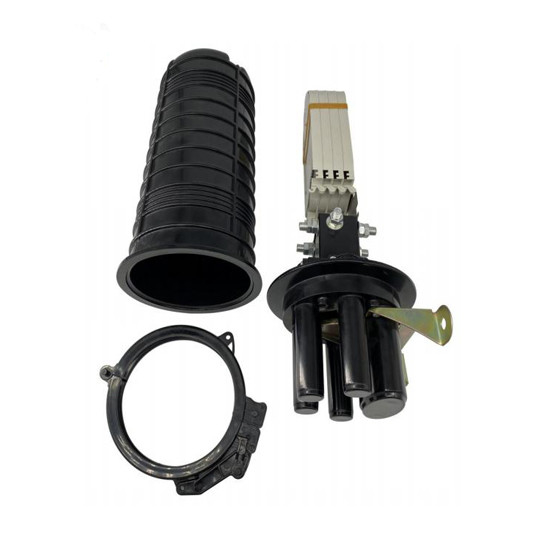

Product Images

Pic#4

Pic#5

Pic#6

Pic#7

Pic#8

Pic#9

Packaging & Storage Information

Package Details

Plastic size: 430*Ф143mm
Inner box with single corrugated size: 440*235*190mm
Carton with double corrugated size: 585*485*455mm (6PCS/Box)
Weight per carton: 14KG

Transportation and Storage

Avoid raining, sun exposuring and squeezing during transportation
Products should be stored in the warehouse avoiding moisture, sun, fire
Storage temperature: 25℃～+40℃
Special parts that are easily damaged during transportation should be protected carefully

Installation Methods

Aerial Mounting

1-Fiber optical splice closure 2-Hanger 3-Steel wire

Pole Mounting

1-Fixed plate 2-Mounting plate 3-U-bolt 4-Telephone pole
