Color: | Black | Capacity: | 96 Cores |
---|---|---|---|
Material: | PP、PC,PC+ABS | Inlet/outlet: | 1+4 |
Dimension(L*W*D,MM): | 390*Ф137 | ||
High Light: | fiber optic splice closure,fiber splice enclosure |
Model No. | ZCSC-D096-02(7231207) | |||||||
Color | Black | |||||||
Capacity | 96 cores | |||||||
Protection Level | IP68 | |||||||
Material | PP,PC,PC+ABS | |||||||
Sealing Method For Inlets | Heat-shrink seal | |||||||
Inlet/outlet | 1+4 | |||||||
Inlet cable port | Ф12-Ф25 | |||||||
Outlet cable port | Ф8-Ф21 | |||||||
Dimension(L*W*D,MM) | 390*Ф137 | |||||||
Inner box size(MM) | 400*210*190 | |||||||
Outer box size(MM) | 585*435*415 |
Pic#1: Top View | Pic#2: Side View | Pic#3: Front View |

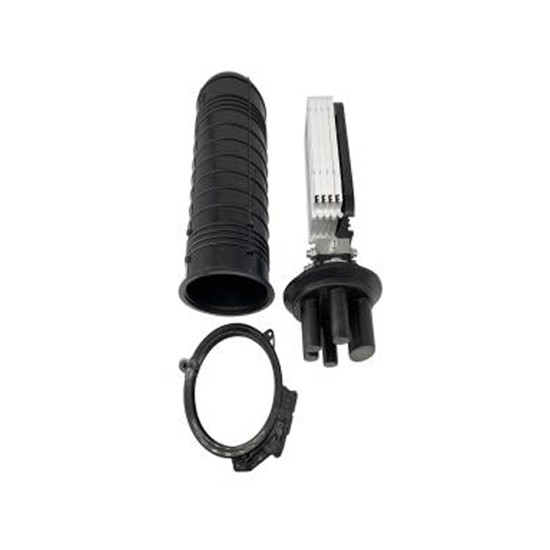

ZION COMMUNICATION Model No. ZCSC-D096-02 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
Package
Transportation and storage
The storage temperature should be from 25℃~+40℃
Note: Special parts that are easily damaged during transportation should be protected carefully
Aerial mounting
1–Fiber optical splice closure 2–Hanger 3—Steel wire
1– Fixed plate 2– Mounting plate 3—U-bolt 4—telephone pole
