Home > Products> Optical Fiber System> 96 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems

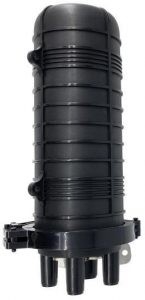

96 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems

96 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems
96 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems
96 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCSC-D096-01(7231206)
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: Black Capacity: 96 Cores
Material: PP、PC，PC+ABS Inlet/outlet: 1+3
Dimension(MM): 410*Ф135
Highlight:

fiber optic splice closure

,

fiber splice enclosure

Product Description

Fiber Optic Vertical Splice Closure ZCSC-D096-01
24/48/96/144 cores IP55 to IP68 rated fiber optic splice closure with PP/PC/PC+ABS construction and heat-shrink or mechanical sealing options.
Inquire Now
Technical Specifications
Model No. ZCSC-D096-01(7231206)
Color Black
Capacity 96 cores
Protection Level IP68
Material PP, PC, PC+ABS
Sealing Method For Inlets Heat-shrink seal
Inlet/Outlet 1+3
Inlet Cable Port Ф10-Ф16
Outlet Cable Port Ф8-Ф20
Dimension (MM) 410*Ф135
Inner Box Size (MM) 420*205*210
Outer Box Size (MM) 630*435*435
Product Dimensions
96 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 0
Top View
96 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 1
Side View
96 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 2
Front View
Product Overview
ZION COMMUNICATION Model ZCSC-D096-01 is a primary equipment component for user access points, designed for protective connection and distribution between multiple cables. Its main function is to connect distribution cables with indoor cables in outdoor environments. Widely utilized in communication systems, cable TV networks, and optical cable network systems due to its robust construction, excellent sealing performance, and ease of installation.
Product Gallery
96 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 3
Internal Components
96 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 4
Sealing Mechanism
96 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 5
Cable Installation
96 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 6
Assembly View
96 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 7
Mounting Bracket
96 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 8
Complete Unit
Packaging & Storage
Package Details
  • Product dimensions: 410*Ф135mm
  • Inner box (single corrugated): 420*205*210mm
  • Carton (double corrugated): 630*435*435mm (6 units per box)
  • Weight per carton: 12 KG
Transportation & Storage Guidelines
  • Protect from rain, direct sunlight, and compression during transport
  • Store in warehouse avoiding moisture, sunlight, and fire hazards
  • Recommended storage temperature: -25℃ to +40℃
  • Handle delicate components with care during transportation
Installation Methods
Aerial Mounting
96 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 9
1 - Fiber optic splice closure | 2 - Hanger | 3 - Steel wire
Pole Mounting
96 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 10
1 - Fixed plate | 2 - Mounting plate | 3 - U-bolt | 4 - Telephone pole
Related Fiber Optic Products
96 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 11
24/48 cores Fiber Optic Vertical Splice Closure - ZC-FV101H(7231216)
96 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 12
24/48 cores Fiber Optic Vertical Splice Closure - ZC-FV105H(7231222)
96 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 13
24/48 cores Fiber Optic Vertical Splice Closure - ZC-FV101M(7231217)
96 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for Outdoor Communication Systems 14
96/144/288 cores Fiber Optic Vertical Splice Closure - ZC-FV106H(7231223)
