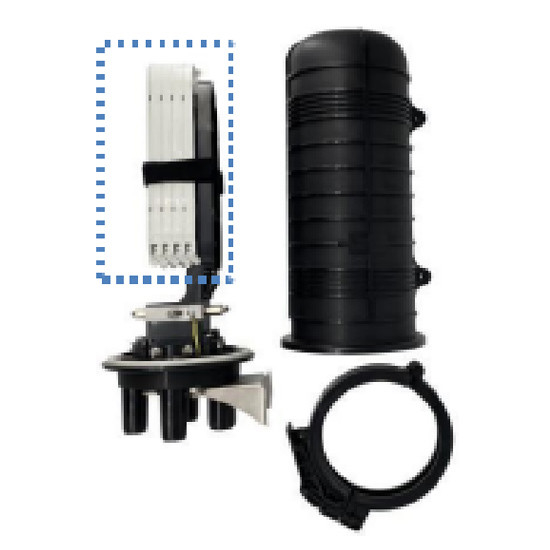

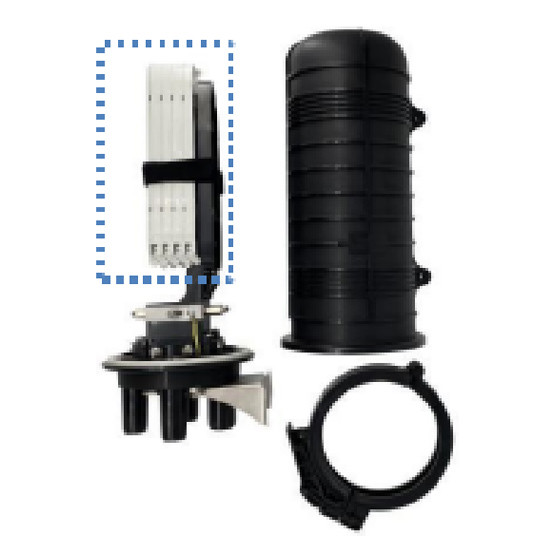

72 Cores Vertical Fiber Optic Splice Closure with IP68 Protection for Secure Cable Connections

72 Cores Vertical Fiber Optic Splice Closure with IP68 Protection for Secure Cable Connections
72 Cores Vertical Fiber Optic Splice Closure with IP68 Protection for Secure Cable Connections
72 Cores Vertical Fiber Optic Splice Closure with IP68 Protection for Secure Cable Connections
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCSC-D072-01(7231205)
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: Black Capacity: 72 Cores
Material: PP、PC，PC+ABS Inlet/outlet: 1+3
Dimension(MM): 410*Ф135
Highlight:

72 Core Fiber Optic Splice Closure

,

7231205 Splice Closure

,

7231205 Splice Closure

Product Description

72 Cores Fiber Optic Splice Closure Vertical ZCSC-D072-01 (7231205)
Product Overview

ZION COMMUNICATION Model ZCSC-D072-01 is a professional fiber optic splice closure designed for protective connection and distribution between multiple cables. This vertical closure serves as essential equipment at user access points, primarily connecting distribution cables with indoor cables in outdoor environments.

Technical Specifications
Model Number ZCSC-D072-01(7231205) 72 Cores Vertical Fiber Optic Splice Closure with IP68 Protection for Secure Cable Connections 0
Color Black
Capacity 72 cores
Protection Level IP68
Material PP, PC, PC+ABS
Sealing Method Heat shrinkable
Inlet/Outlet 1+3
Inlet Cable Port Ф10-Ф16
Outlet Cable Port Ф8-Ф20
Dimensions (MM) 410*Ф135
Inner Box Size (MM) 340*160*130
Outer Box Size (MM) 665*355*495
Dimension Diagrams
72 Cores Vertical Fiber Optic Splice Closure with IP68 Protection for Secure Cable Connections 1
Top View
72 Cores Vertical Fiber Optic Splice Closure with IP68 Protection for Secure Cable Connections 2
Side View
72 Cores Vertical Fiber Optic Splice Closure with IP68 Protection for Secure Cable Connections 3
Front View
Applications

Widely used in communication systems, cable TV networks, optical cable network systems, and other telecommunications infrastructure applications. Features steady structure, excellent sealing performance, and easy installation.

Product Images
72 Cores Vertical Fiber Optic Splice Closure with IP68 Protection for Secure Cable Connections 4
72 Cores Vertical Fiber Optic Splice Closure with IP68 Protection for Secure Cable Connections 5
72 Cores Vertical Fiber Optic Splice Closure with IP68 Protection for Secure Cable Connections 6
72 Cores Vertical Fiber Optic Splice Closure with IP68 Protection for Secure Cable Connections 7
72 Cores Vertical Fiber Optic Splice Closure with IP68 Protection for Secure Cable Connections 8
72 Cores Vertical Fiber Optic Splice Closure with IP68 Protection for Secure Cable Connections 9
Packaging & Storage
  • Plastic bag size: 410*Ф135mm
  • Inner box with single corrugated size: 340*160*130mm
  • Carton with double corrugated size: 665*355*495mm (6PCS/Box)
  • Weight per carton: 12 KG
  • Storage temperature: 25℃～+40℃
  • Protect from rain, sun exposure, and compression during transport
  • Store in dry warehouse away from moisture, direct sunlight, and fire
Installation Methods
72 Cores Vertical Fiber Optic Splice Closure with IP68 Protection for Secure Cable Connections 10
Aerial Mounting: 1-Fiber optical splice closure 2-Hanger 3-Steel wire
72 Cores Vertical Fiber Optic Splice Closure with IP68 Protection for Secure Cable Connections 11
Pole Mounting: 1-Fixed plate 2-Mounting plate 3-U-bolt 4-Telephone pole
