ZCSC-D048-03 7231204 Vertical Fiber Optic Splice Closure with 48 Cores IP68 Protection and Heat-shrink Seal

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCSC-D048-03(7231204)

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	Black	Capacity:	48 Cores
Material:	PP、PC，PC+ABS	Inlet/outlet:	1+4
Dimension(MM):	390*Ф135
Highlight:	7231204 Splice Closure , ZCSC-D048-03 , 1+4 Inlet Outlet Splice Closure

Product Description

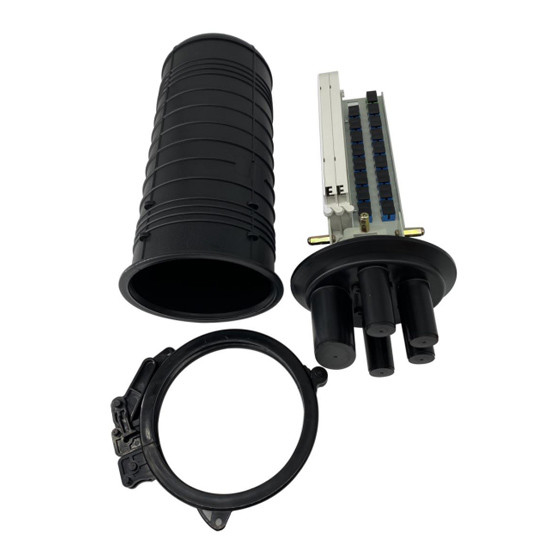

ZCSC-D048-03 7231204 Fiber Optic Splice Closure Vertical

Professional fiber optic splice closure designed for protective connection and distribution between multiple cables in communication systems, cable TV, and optical network applications.

Product Overview

ZION COMMUNICATION Model ZCSC-D048-04 serves as essential equipment for user access points, providing reliable protective connection and distribution between two or more cables. Primarily used for connecting distribution cable and indoor cable in outdoor environments, this closure features robust construction, excellent sealing performance, and easy installation.

Technical Specifications

Model No.	ZCSC-D048-03(7231204)
Color	Black
Capacity	48 cores
Protection Level	IP68
Material	PP, PC, PC+ABS
Sealing Method For Inlets	Heat-shrink seal
Inlet/outlet	1+4
Inlet cable Dia	Ф13-Ф23
Outlet cable Dia	Ф8-Ф20
Relative humidity	≤95%(＋30℃)
Atmospheric pressure	62～101kPa
Dimension(MM)	390*Ф135
Inner box size(MM)	400210190
Outer box size(MM)	645415395
Per weight(KG)	1.7
Gross weight(KG)	10.5
Pcs/Carton(PCS)	6

Product Images

Quality Standards & Testing

Complies with appearance and structure requirements of YD/T 590.2-2005, YD/T 778-2011
Meets transportation test requirements of YD/T778-2011
Conforms to plastic parts technical requirements of CB 867-83
IP68 protection level certified
Packaging meets GB3873-1993 communication equipment standards
Flame retardant performance: non-flame retardant

Component Structure

Includes box bottom, box cover, cable holder, strengthening cable holder, splice tray, transparent cover for splice tray, cable ties, splice tray mounting plate, sealing components, box hoop, and accessories.

Packaging & Storage

Packaging:
Inner box: 400×210×190mm
Outer carton: 645×415×395mm (6 units per carton)

Transportation & Storage Guidelines:
• Protect from rain, direct sunlight, and compression during transport
• Store in dry, shaded areas away from fire hazards
• Maintain storage temperature between 25℃ and +40℃
• Handle delicate components with care during shipping

Installation Methods

Aerial Mounting:
ZCSC-D048-03 7231204 Vertical Fiber Optic Splice Closure with 48 Cores IP68 Protection and Heat-shrink Seal 4

1-Fiber optic splice closure 2-Hanger 3-Steel wire

Pole Mounting:
ZCSC-D048-03 7231204 Vertical Fiber Optic Splice Closure with 48 Cores IP68 Protection and Heat-shrink Seal 5

1-Fixed plate 2-Mounting plate 3-U-bolt 4-Telephone pole
