Vertical 48 Cores IP68 Heat-shrink Seal Fiber Optic Splice Closure ZCSC-D048-01

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCSC-D048-01(7231202)

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	Black	Capacity:	48 Cores
Material:	PP、PC，PC+ABS	Inlet/outlet:	1+3
Dimension(MM):	340*Ф110
Highlight:	7231202 Optical Networking Products , Fiber Optic Splice Closure 48 Cores , ZCSC-D048-01

Product Description

Vertical 48 Cores Fiber Optic Splice Closure ZCSC-D048-01

Model: ZCSC-D048-01 (7231202)

Product Overview

The ZION COMMUNICATION ZCSC-D048-01 fiber optic splice closure is essential equipment for user access points, designed for protective connection and distribution between multiple cables. Its primary function is connecting distribution cables to indoor cables in outdoor environments. Featuring a robust structure, excellent sealing performance, and easy installation, it's widely used in communication systems, cable TV networks, and optical cable network systems.

Technical Specifications

Model No.	ZCSC-D048-01(7231202)
Color	Black
Capacity	48 cores
Protection Level	IP68
Material	PP, PC, PC+ABS
Sealing Method For Inlets	Heat-shrink seal
Inlet/Outlet	1+3
Inlet Cable Diameter	Ф11-Ф23
Outlet Cable Diameter	Ф8-Ф20
Relative Humidity	≤95%(＋30℃)
Atmospheric Pressure	62～101kPa
Dimensions (MM)	340*Ф110
Inner Box Size (MM)	350180140
Outer Box Size (MM)	555365575
Unit Weight (KG)	1.1
Gross Weight (KG)	14.5
Units per Carton	12

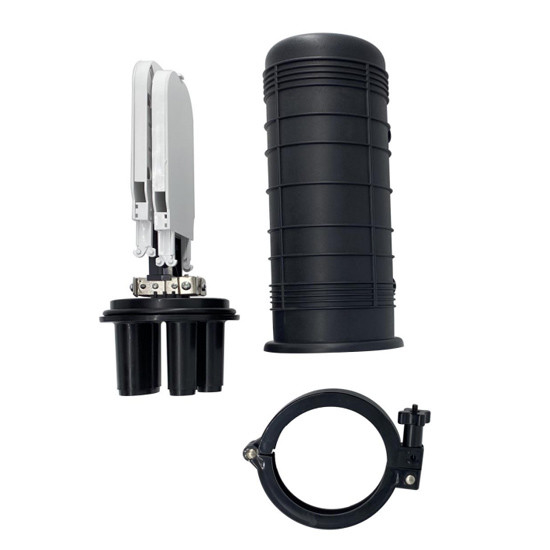

Product Images

Quality Standards & Testing

Meets appearance and structure requirements of YD/T 590.2-2005, YD/T 778-2011
Complies with transportation test requirements of YD/T778-2011
Adheres to plastic parts technical requirements of CB 867-83
IP68 protection level certified
Packaging meets GB3873-1993 standards
Flame retardant performance: non-flame retardant

Component Structure

Includes box bottom, box cover, cable holder, reinforcement cable holder, splice tray, transparent tray cover, cable ties, tray mounting plate, body sealing components, box hoop, and accessories.

Packaging & Storage

Packaging

Inner box: 350×180×140mm

Outer carton: 555×365×575mm (12 units per carton)

Transportation & Storage

Protect from rain, direct sunlight, and compression during transport. Store in dry, shaded areas away from fire sources. Maintain storage temperature between 25℃ and +40℃. Handle delicate components with care during shipping.

Installation Methods

Aerial Mounting
