Home > Products> Optical Fiber System> IP68 Fiber Optic Splice Closure with 24 Cores Capacity and Heat-shrink Seal for Secure Cable Protection

IP68 Fiber Optic Splice Closure with 24 Cores Capacity and Heat-shrink Seal for Secure Cable Protection

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCSC-D024-01(7231201)

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	Black	Capacity:	24 Cores
Material:	PP、PC，PC+ABS	Inlet/outlet:	1+2
Dimension(MM):	327*Ф90
Highlight:	Fiber Optic Vertical Splice Closure , Fiber Optic Splice Closure IP68 , ZCSC-D024-01

Product Description

IP68 Fiber Optic Vertical Splice Closure ZCSC-D024-01 (7231201)

Professional fiber optic splice closure designed for protective connection and distribution between multiple cables in communication systems, cable TV, and optical network applications.

Product Overview

ZION COMMUNICATION Model ZCSC-D024-01 serves as essential equipment for user access points, providing reliable protective connection and distribution between distribution cables and indoor cables in outdoor environments. Featuring robust construction, superior sealing performance, and easy installation.

Technical Specifications

Model No.	ZCSC-D024-01(7231201)
Color	Black
Capacity	24 cores
Protection Level	IP68
Material	PP, PC, PC+ABS
Sealing Method	Heat-shrink seal
Inlet/Outlet	1+2
Inlet Cable Diameter	Ф10-Ф18 mm
Outlet Cable Diameter	Ф8-Ф15 mm
Relative Humidity	≤95% (+30℃)
Atmospheric Pressure	62-101 kPa
Dimensions	327 × Ф90 mm
Weight (Per Unit)	0.85 kg
Packaging	15 pcs/carton, Gross Weight: 13.5 kg

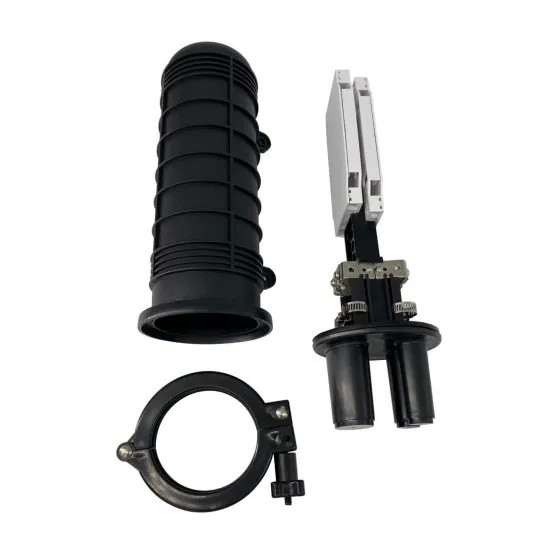

Product Images

Quality Standards & Testing

Complies with YD/T 590.2-2005 and YD/T 778-2011 standards
Meets transportation test requirements per YD/T778-2011
Adheres to CB 867-83 plastic parts technical requirements
IP68 protection level certified
Packaging meets GB3873-1993 communication equipment standards
Flame retardant performance: Non-flame retardant

Component Structure

Includes box bottom, box cover, cable holder, strengthening cable holder, splice tray, transparent cover, cable ties, installation plate, sealing components, box hoop, and accessories.

Packaging & Storage

Inner box: 340×160×130 mm | Outer box: 665×355×495 mm (15 units per carton). Store in dry, temperature-controlled environment (25℃-40℃), protected from moisture, sunlight, and fire.

Installation Methods

Aerial Mounting

1-Fiber optic splice closure 2-Hanger 3-Steel wire

Pole Mounting

1-Fixed plate 2-Mounting plate 3-U-bolt 4-Telephone pole
