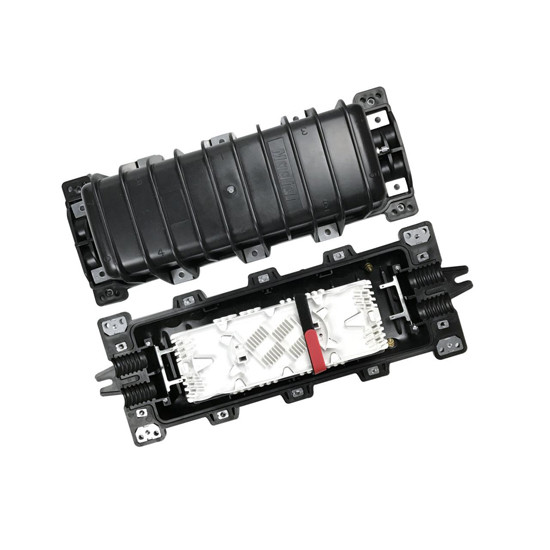

Fiber Optic Horizontal Splice Closure ZCSC-H144-04 144 Core

Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCSC-H144-04(7231120)
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Detail Information
Color: Black Capacity: 144 Cores
Material: PC, PC+ABS,PP Inlet/outlet: 2+2
Dimension(L*W*D,MM): 575*178*115
High Light:

Mechanical Seal Fiber Optic Splice Closure

,

ZCSC-H144-04

,

Fiber Optic Splice Closure 144 Core


Product Description



24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE





Fiber Optic Horizontal Splice Closure-ZCSC-H144-04(7231120)

Technical Index

Model No. ZCSC-H144-04(7231120) Fiber Optic Horizontal Splice Closure ZCSC-H144-04 144 Core 0
Color Black
Capacity 144 cores
Protection Level IP68
Material PC, PC+ABS,PP
Sealing Method For Inlets Mechanical seal
Inlet/outlet 2+2
Inlet cable port Ф25
Outlet cable port Ф25
Dimension(L*W*D,MM) 575*178*115
Inner box size(MM) 585*190*125
Outer box size(MM) 600*395*515
Gross weight(KG) 24
Pcs/Carton(PCS) 8

Overview

ZION COMMUNICATION Model No. ZCSC-H144-04 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.

Pictures for reference

Fiber Optic Horizontal Splice Closure ZCSC-H144-04 144 Core 1 Fiber Optic Horizontal Splice Closure ZCSC-H144-04 144 Core 2 Fiber Optic Horizontal Splice Closure ZCSC-H144-04 144 Core 3

Products Information

  • Plastic bag size:575*178*115mm
  • Inner box with single corrugated size: 585*190*125mm
  • Carton with double corrugated size:600*395*515mm(8PCS/Box)
  • Weight per carton:24 KG

Transportation and storage

  • Avoid raining, sun exposuring and squeezing during transportation
  • Products should be stored in the warehouse avoiding moisture, sun, fire.

The storage temperature should be from 25℃~+40℃

Note: Special parts that are easily damaged during transportation should be protected carefully
