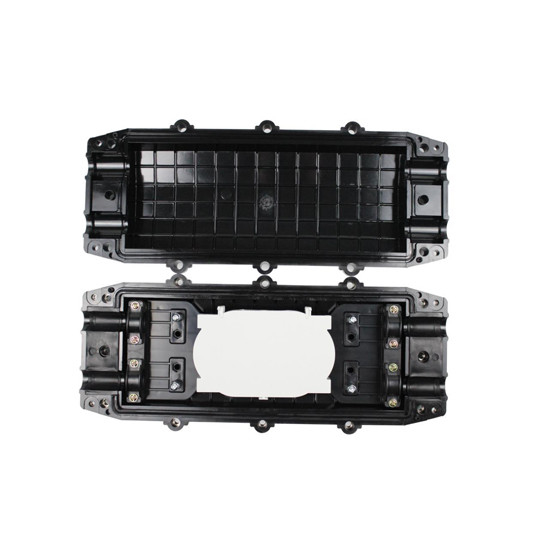

Fiber Optic Splice Closure with 144 Cores IP68 Protection and Mechanical Seal for Secure Cable Connections

Fiber Optic Splice Closure with 144 Cores IP68 Protection and Mechanical Seal for Secure Cable Connections
Fiber Optic Splice Closure with 144 Cores IP68 Protection and Mechanical Seal for Secure Cable Connections
Fiber Optic Splice Closure with 144 Cores IP68 Protection and Mechanical Seal for Secure Cable Connections
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCSC-H144-02（7231118）
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: Black Capacity: 144 Cores
Material: PC, PC+ABS,PP Inlet/outlet: 3+3
Dimension(L*W*D,MM): 430*182*124
Highlight:

Horizontal Fiber Optic Splice Closure Black

,

Mechanical Seal Fiber Cable Splicing

,

ZCSC-H144-02

Product Description

Fiber Optic Horizontal Splice Closure ZCSC-H144-02 Mechanical Seal
24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE
Fiber Optic Horizontal Splice Closure-ZCSC-H144-02 (7231118)
Model No. ZCSC-H144-02(7231118) Fiber Optic Splice Closure with 144 Cores IP68 Protection and Mechanical Seal for Secure Cable Connections 0
Color Black
Capacity 144 cores
Protection Level IP68
Material PC, PC+ABS, PP
Sealing Method For Inlets Mechanical seal
Inlet/outlet 3+3
Inlet cable port Ф15, Ф18, Ф21
Outlet cable port Ф15, Ф18, Ф21
Dimension (L*W*D, MM) 430*182*124
Inner box size (MM) 490*190*135
Outer box size (MM) 565*395*505
Gross weight (KG) 22.5
Pcs/Carton (PCS) 8
Dimension Diagram (mm)
Fiber Optic Splice Closure with 144 Cores IP68 Protection and Mechanical Seal for Secure Cable Connections 1
Top View
Fiber Optic Splice Closure with 144 Cores IP68 Protection and Mechanical Seal for Secure Cable Connections 2
Side View
Fiber Optic Splice Closure with 144 Cores IP68 Protection and Mechanical Seal for Secure Cable Connections 3
Front View
Product Overview
ZION COMMUNICATION Model No. ZCSC-H144-02 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It's widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
Product Images
Fiber Optic Splice Closure with 144 Cores IP68 Protection and Mechanical Seal for Secure Cable Connections 4
Fiber Optic Splice Closure with 144 Cores IP68 Protection and Mechanical Seal for Secure Cable Connections 5
Fiber Optic Splice Closure with 144 Cores IP68 Protection and Mechanical Seal for Secure Cable Connections 6
Packaging Information
  • Plastic bag size: 430*182*124mm
  • Inner box with single corrugated size: 490*190*135mm
  • Carton with double corrugated size: 555*395*505mm (8PCS/Box)
  • Weight per carton: 22.5 KG
Transportation and Storage
  • Avoid raining, sun exposuring and squeezing during transportation
  • Products should be stored in the warehouse avoiding moisture, sun, fire
  • The storage temperature should be from 25℃ to +40℃
  • Special parts that are easily damaged during transportation should be protected carefully
