144 Core IP68 Fiber Optic Splice Closure ZCSC-H144-01 with Mechanical Seal for Horizontal Installation

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCSC-H144-01（7231117）

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	Black	Capacity:	144 Cores
Material:	PC, PC+ABS,PP	Inlet/outlet:	2+2
Dimension(LWD,MM):	430182124
Highlight:	144 Core Fiber Cable Splicing , 144 Core Fiber Optic Splice Closure , ZCSC-H144-01

Product Description

144 Core Fiber Optic Splice Closure ZCSC-H144-01 Horizontal

Product Overview

ZION COMMUNICATION Model ZCSC-H144-01 is a high-capacity horizontal fiber optic splice closure designed for protective connection and distribution between multiple cables. This closure serves as essential equipment at user access points, primarily connecting distribution cables to indoor cables in outdoor environments.

Technical Specifications

Model Number	ZCSC-H144-01(7231117)
Color	Black
Capacity	144 cores
Protection Level	IP68
Material	PC, PC+ABS, PP
Sealing Method	Mechanical seal
Inlet/Outlet	2+2
Inlet Cable Port	Ф21
Outlet Cable Port	Ф21
Dimensions (LWD)	430182124 mm
Inner Box Size	490190135 mm
Outer Box Size	555395505 mm
Gross Weight	22.5 KG	Pcs/Carton	8

Dimension Diagrams

Top View

Side View

Front View

Key Features & Applications

Robust construction with steady structure and excellent sealing performance
Easy installation and maintenance
Widely used in communication systems, cable TV networks, and optical cable network systems
Suitable for outdoor environments with IP68 protection

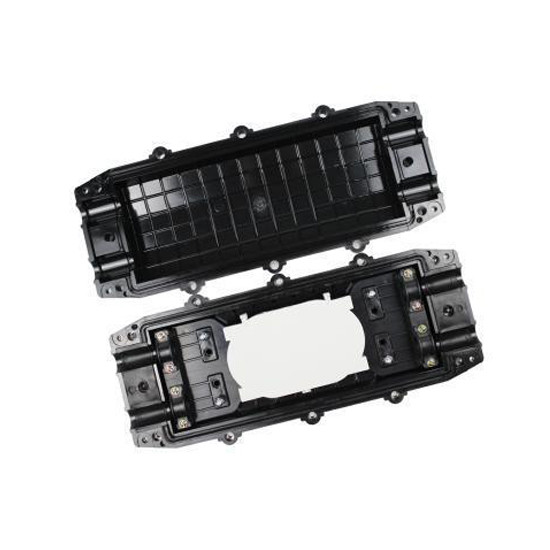

Product Images

Packaging Information

Plastic bag size: 430*182*124mm
Inner box with single corrugated size: 490*190*135mm
Carton with double corrugated size: 555*395*505mm (8PCS/Box)
Weight per carton: 22.5 KG

Transportation & Storage Guidelines

Avoid exposure to rain, direct sunlight, and excessive pressure during transportation
Store in warehouse conditions avoiding moisture, sunlight, and fire hazards
Recommended storage temperature: 25℃ to +40℃
Handle delicate components with care during transit
