Fiber Optic Splice Closure 96 Cores IP68 Protection with Mechanical Seal for Secure Cable Connections

Fiber Optic Splice Closure 96 Cores IP68 Protection with Mechanical Seal for Secure Cable Connections
Fiber Optic Splice Closure 96 Cores IP68 Protection with Mechanical Seal for Secure Cable Connections
Fiber Optic Splice Closure 96 Cores IP68 Protection with Mechanical Seal for Secure Cable Connections
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCSC-H096-08（7231114）
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: Black Capacity: 96 Cores
Material: PP、PC，PC+ABS Inlet/outlet: 2+2
Dimension(L*W*D,MM): 478*169*106
Highlight:

Fiber Optic Splice Closure 96 Core

,

ZCSC-H096-08

,

96 Core Fiber Cable Splicing

Product Description

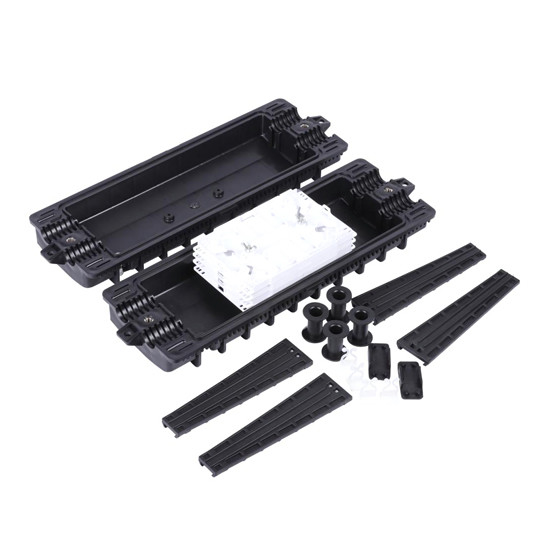

Fiber Optic Horizontal Splice Closure ZCSC-H096-08 7231114 96 Core
Product Overview
ZION COMMUNICATION Model No. ZCSC-H096-08 is a primary equipment unit for user access points, designed for protective connection and distribution between two or more cables. Its main function is to connect distribution cable and indoor cable in outdoor environments. Widely used in communication systems, cable TV, optical cable network systems and other applications due to its robust structure, excellent sealing performance, and easy installation.
Technical Specifications
Model No.ZCSC-H096-08(7231114)Fiber Optic Splice Closure 96 Cores IP68 Protection with Mechanical Seal for Secure Cable Connections 0
ColorBlack
Capacity96 cores
Protection LevelIP68
MaterialPP, PC, PC+ABS
Sealing Method For InletsMechanical seal
Inlet/outlet2+2
Inlet cable portФ7-Ф25
Outlet cable portФ7-Ф25
Dimension (L*W*D, MM)478*169*106
Inner box size (MM)505*185*120
Outer box size (MM)595*425*515
Per weight (KG)2.26
Gross weight (KG)14.5
Pcs/Carton (PCS)10
Packaging Information
  • Plastic bag size: 478*169*106mm
  • Inner box with single corrugated size: 505*185*120mm
  • Carton with double corrugated size: 595*425*515mm (10PCS/Box)
  • Weight per carton: 14.5 KG
Note: Special parts that are easily damaged during transportation should be protected carefully
