Detail Information

Color:	Black	Capacity:	96 Cores
Material:	PP、PC，PC+ABS	Inlet/outlet:	2+2
Dimension(LWD,MM):	465190120
Highlight:	96 Core Fiber Optic Splice , ZCSC-H096-05

Product Description

Fiber Optic Splice Closure

24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE

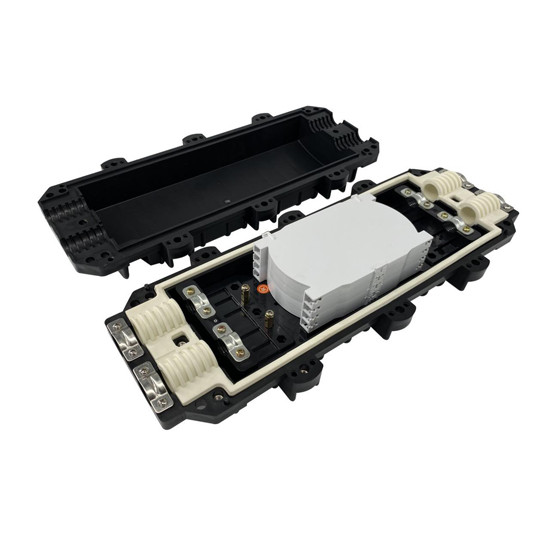

Fiber Optic Horizontal Splice Closure-ZCSC-H096-05(7231111)

Technical Index

Model No.			ZCSC-H096-05(7231111)
Color			Black
Capacity			96 cores
Protection Level			IP68
Material			PP,PC,PC+ABS
Sealing Method For Inlets			Mechanical seal
Inlet/outlet			2+2
Inlet cable port			Ф13,Ф16,Ф20
Outlet cable port			Ф13,Ф16,Ф20
Dimension(LWD,MM)			465190120
Inner box size(MM			470205135
Outer box size(MM			690485425
Per weight(KG)			2.4
Gross weight(KG)			25
Pcs/Carton(PCS)			10

Overview

ZION COMMUNICATION Model No. ZCSC-H096-05 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It’s widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.

Products Information

Plastic bag size:465*190*120mm
Inner box with single corrugated size: 470*205*135mm
Carton with double corrugated size:690*485*425mm(10PCS/Box)
Weight per carton:25 KG

Note: Special parts that are easily damaged during transportation should be protected carefully

Fiber Optic Horizontal Splice Closure

Optical Components

Cabling Infrastructure

Tag:

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCSC-H096-05（7231111）

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit
