ABS Fiber Optic Horizontal Splice Closure with 48 Cores IP68 Protection and Mechanical Seal for Secure Cable Connections

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCSC-H048-04（7231106）

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	Black	Capacity:	48 Cores
Material:	PP、PC，PC+ABS	Inlet/outlet:	2+2
Dimension(LWD,MM):	40616874
Highlight:	PP Fiber Optic Horizontal Splice Closure , ZCSC-H048-04 , ABS Fiber Optic Horizontal Splice Closure

Product Description

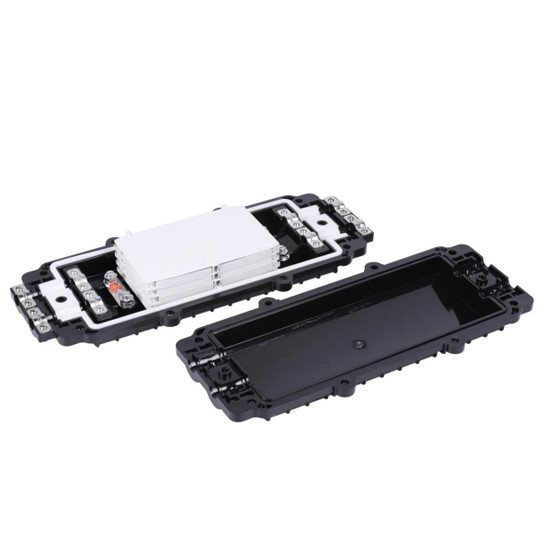

ABS Fiber Optic Horizontal Splice Closure ZCSC-H048-04 (7231106)

Product Overview

ZION COMMUNICATION Model No. ZCSC-H048-04 is a high-performance fiber optic horizontal splice closure designed for protective connection and distribution between multiple cables. This closure serves as essential equipment for user access points, primarily connecting distribution cables with indoor cables in outdoor environments.

Key Features

48-core capacity for versatile applications
IP68 protection level for maximum environmental resistance
Durable construction using PP, PC, and PC+ABS materials
Mechanical seal for inlet protection
2+2 inlet/outlet configuration
Wide application in communication systems, cable TV, and optical network systems

Technical Specifications

Model No.	ZCSC-H048-04(7231106)
Color	Black
Capacity	48 cores
Protection Level	IP68
Material	PP, PC, PC+ABS
Sealing Method	Mechanical seal
Inlet/Outlet	2+2
Inlet Cable Port	Ф15
Outlet Cable Port	Ф15
Dimensions (LWD)	40616874 mm
Inner Box Size	41518590 mm
Outer Box Size	465430385 mm
Unit Weight	1.9 KG
Gross Weight	20 KG
Units per Carton	10 PCS

Packaging Information

Plastic bag size: 406*168*74 mm
Inner box with single corrugated size: 415*185*90 mm
Carton with double corrugated size: 465*430*385 mm (10PCS/Box)
Weight per carton: 20 KG

Note: Special parts that are easily damaged during transportation should be protected carefully.
