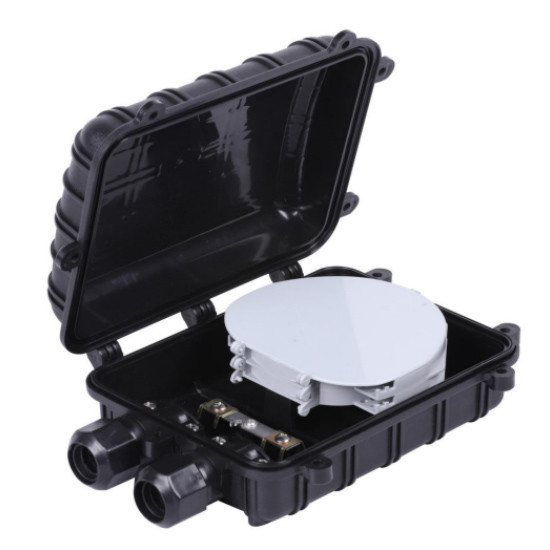

Horizontal Fiber Optic Splice Closure with 48 Cores IP68 Protection and Mechanical Seal

Horizontal Fiber Optic Splice Closure with 48 Cores IP68 Protection and Mechanical Seal
Horizontal Fiber Optic Splice Closure with 48 Cores IP68 Protection and Mechanical Seal
Horizontal Fiber Optic Splice Closure with 48 Cores IP68 Protection and Mechanical Seal
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCSC-H048-01（7231105）
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Color: Black Capacity: 48 Cores
Material: PP、PC，PC+ABS Inlet/outlet: 1+1
Dimension(L*W*D,MM): 283*198*90
Highlight:

Black Horizontal Fiber Optic Splice Closure

,

ZCSC-H048-01

,

48 Cores Fiber Optic Splice Closure

Product Description

Horizontal Fiber Optic Splice Closure ZCSC-H048-01 (7231105)
Product Overview
ZION COMMUNICATION Model ZCSC-H048-01 is a primary equipment for user access points, designed for protective connection and distribution between multiple cables. This horizontal fiber optic splice closure connects distribution cables to indoor cables in outdoor environments and is widely used in communication systems, cable TV networks, and optical cable network systems.
Technical Specifications
Model No. ZCSC-H048-01(7231105) Horizontal Fiber Optic Splice Closure with 48 Cores IP68 Protection and Mechanical Seal 0
Color Black
Capacity 48 cores
Protection Level IP68
Material PP, PC, PC+ABS
Sealing Method Mechanical seal
Inlet/Outlet 1+1
Inlet Cable Port Ф14-Ф20
Outlet Cable Port Ф14-Ф20
Dimensions (L*W*D, MM) 283*198*90
Inner Box Size (MM) 290*205*100
Outer Box Size (MM) 595*425*515
Unit Weight (KG) 1.1
Gross Weight (KG) 23.7
Units per Carton 20
Packaging Information
Plastic bag size: 283×198×90mm
Inner box with single corrugated size: 290×205×100mm
Carton with double corrugated size: 595×425×515mm (20 units per box)
Weight per carton: 23.7 KG
Note: Special parts that are easily damaged during transportation should be protected carefully.
