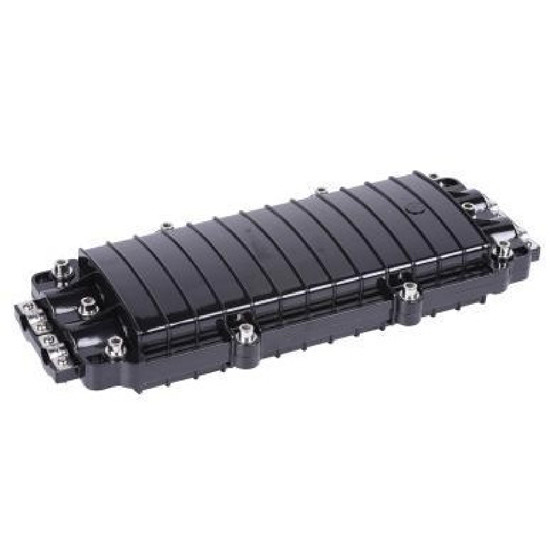

24 Cores IP68 PC+ABS Fiber Optic Horizontal Splice Closure ZCSC-H024-04

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	ZCSC-H024-04（7231104）

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Color:	Black	Capacity:	24 Cores
Material:	PC, PC+ABS,PP	Inlet/outlet:	2+2
Dimension(LWD,MM):	40616874
Highlight:	PC Fiber Optic Horizontal Splice Closure , ZCSC-H024-04 , Fiber Optic Horizontal Splice Closure Black

Product Description

PC Fiber Optic Horizontal Splice Closure ZCSC-H024-04 (7231104)

Product Overview

This fiber optic splice closure is designed for protective connection and distribution between multiple cables at user access points. It connects distribution cables with indoor cables in outdoor environments and is widely used in communication systems, cable TV networks, and optical cable systems.

Technical Specifications

Model Number	ZCSC-H024-04 (7231104)
Color	Black
Capacity	24 cores
Protection Level	IP68
Material	PC, PC+ABS, PP
Sealing Method	Screw mechanical
Inlet/Outlet	2+2
Inlet Cable Port	Ф15
Outlet Cable Port	Ф15
Dimensions (L×W×D)	406×168×74 mm
Inner Box Size	415×185×90 mm
Outer Box Size	465×430×385 mm
Gross Weight	20 kg
Units per Carton	20 pcs

Product Dimensions

Pic#1: Top View | Pic#2: Side View | Pic#3: Front View

Key Features

Constructed from high-quality engineering plastic for superior strength
Advanced waterproof design suitable for underground and aerial applications
Includes 2 splice trays with 12-core capacity each
Optimized fiber routing ensures proper bend radius and adequate storage space

Transportation & Storage Guidelines

Protect from rain, direct sunlight, and compression during transport
Store in dry warehouse conditions away from moisture, sunlight, and fire
Recommended storage temperature: 25°C to +40°C
Handle delicate components with care during shipping
