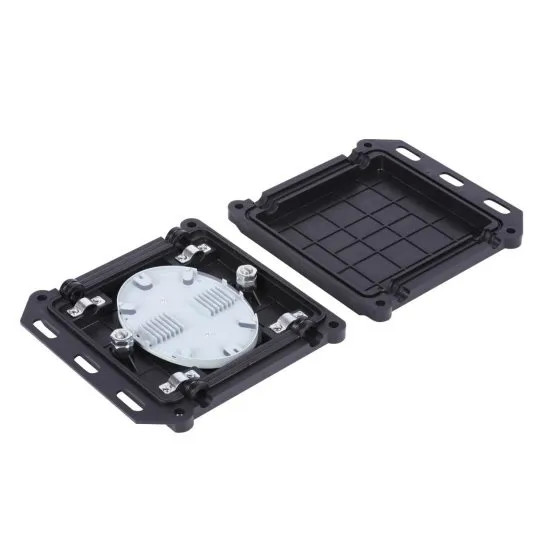

24 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for FTTH Horizontal Splice Closure

Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: ZCSC-H024-01(7231101)
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Detail Information
Color: Black Capacity: 24 Cores
Material: PP、PC,PC+ABS Inlet/outlet: 2+2
Dimension(L*W*D,MM): 406*168*74
Highlight:

IP68 Horizontal Fiber Optic Splice Closure

,

IP68 Fiber Optic Horizontal Splice Closure

,

ZCSC-H024-01


Product Description

FTTH FTTX Box Distribution Enclosure Closure Joint Fiber Optic Horizontal Splice Closure ZCSC-H024-01 7231101
Fiber Optic Splice Closure
24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE
Fiber Optic Horizontal Splice Closure - ZCSC-H024-01 (7231101)
Technical Specifications
Model No. ZCSC-H024-01 (7231101) 24 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for FTTH Horizontal Splice Closure 0
Color Black
Capacity 24 cores
Protection Level IP68
Material PP, PC, PC+ABS
Sealing Method For Inlets Heat-shrink seal
Inlet/Outlet 2+2
Inlet Cable Port Ф13-Ф16
Outlet Cable Port Ф13-Ф16
Dimension (L*W*D, MM) 406*168*74
Inner Box Size (MM) 220*220*55
Outer Box Size (MM) 500*330*460
Per Weight (KG) 0.9
Gross Weight (KG) 19
Pcs/Carton (PCS) 20
Dimension Diagram (mm)
24 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for FTTH Horizontal Splice Closure 1 24 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for FTTH Horizontal Splice Closure 2 24 Cores IP68 Fiber Optic Splice Closure with Heat-shrink Seal for FTTH Horizontal Splice Closure 3
Pic#1: Top View | Pic#2: Side View | Pic#3: Front View
Product Overview
ZION COMMUNICATION Model No. ZCSC-H024-01 is one of the main equipment for user access points, applied for protective connection and distribution between two or more cables. The primary function is to connect distribution cable and indoor cable in the open air. It's widely used in communication systems, cable TV, optical cable network systems and others by virtue of steady structure, good sealing performance and easy construction.
Packaging Information
  • Plastic bag size: 210*210*45mm
  • Inner box with single corrugated size: 220*220*55mm
  • Carton with double corrugated size: 500*330*460mm (20PCS/Box)
  • Weight per carton: 19 KG
Transportation and Storage
  • Avoid raining, sun exposuring and squeezing during transportation
  • Products should be stored in the warehouse avoiding moisture, sun, fire
  • The storage temperature should be from 25℃ to +40℃
Special parts that are easily damaged during transportation should be protected carefully.
