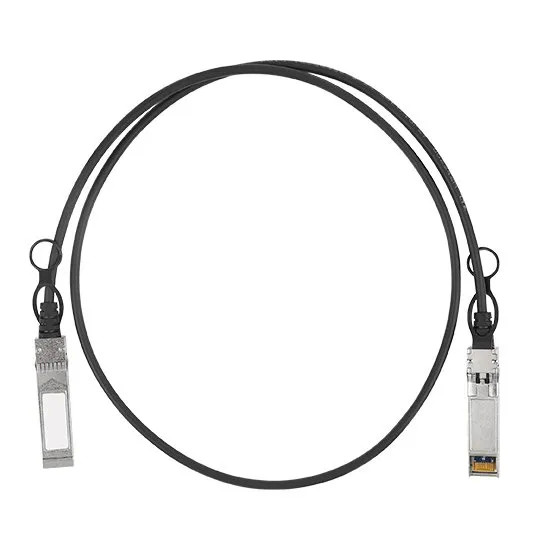

10Gbps Passive Twinax SFP+ Direct Attach Cable with 10m Max Distance for Data Center Cabling

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	Direct Attach Cable

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Max Cable Distance 1:

Connector Type:

SFP+ To SFP+

Cable Type:

Passive Twinax

Max Data Rate:

10Gbps

Highlight:

SFP+ Direct Attach Cable Passive

10G SFP+ Direct Attach Cable

10Gbps SFP+ Direct Attach Cable

Product Description

SFP+ TO SFP+ Direct Attach Cable 10G Passive Twinax

10G Passive SFP+ TO SFP+ Direct Attach Cable

Product Information

Zion Code	Zion Description
7217060	10G Passive SFP+ TO SFP+ Direct Attach Cable

Applications

1-8G Fiber Channel and 1-10G Gigabit Ethernet
Data center cabling infrastructure
Hub, Switches, Routers, Servers, Network Interface Cards (NICs)
Networking, Storage, Telecommunications

Product Description

The 7217060 10G SFP+ direct attach cable assembly is based on 10G Ethernet IEEE802.3ae standard, fiber channel and SFF-8431 standard. This passive SFP+ cable provides a low-cost alternative for short reach applications in data center cabling.

Technical Specifications

Parameter	Specification	Parameter	Specification
Connector Type	SFP+ to SFP+	Vendor Name	Zion Communication
Max Data Rate	10Gbps	Wire AWG	24AWG - 30AWG
Max Cable Distance	10m	Cable Type	Passive Twinax
Power Supply	3.3V	Operating Temp.	0°C to 70°C (32°F to 158°F)

Zion Code	Zion Description
7217010	100G Passive QSFP28 TO QSFP28 Direct Attach Cable
7217020	100G Passive QSFP28 TO 4×SFP28 Direct Attach Cable
7217030	40G Passive QSFP+ TO QSFP+ Direct Attach Cable
7217040	40G Passive QSFP+ TO 4×SFP+ Direct Attach Cable
7217050	25G Passive SFP28 TO SFP28 Direct Attach Cable
7217060	10G Passive SFP+ TO SFP+ Direct Attach Cable
