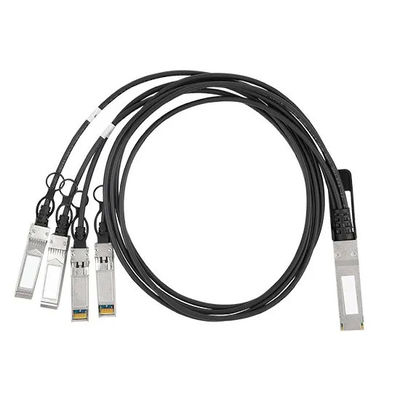

40Gbps Passive Twinax Direct Attach Cable with 10m Distance for QSFP+ to 4×SFP+ Connections

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	Direct Attach Cable

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Max Cable Distance 1:

Connector Type:

QSFP+ To 4×SFP+

Cable Type:

Passive Twinax

Max Data Rate:

40Gbps

Highlight:

10m SFP+ Direct Attach Cable

40G SFP+ Direct Attach Cable

SFP+ Direct Attach Cable

Product Description

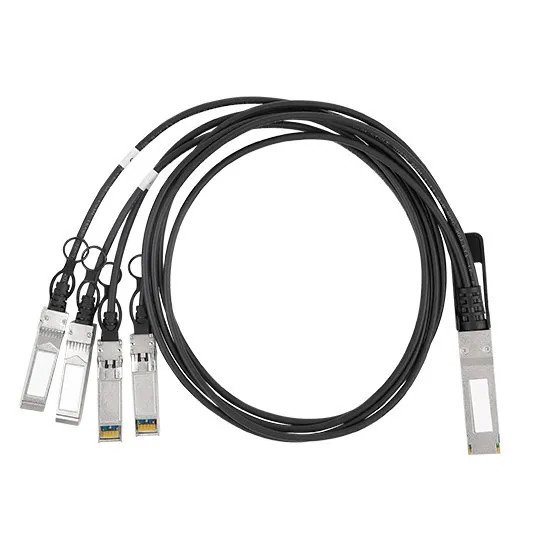

40G Passive QSFP+ TO 4×SFP+ Direct Attach Cable

The 7217040 40G QSFP+ TO 4×SFP+ direct attach cable is a 4-channel parallel passive copper solution designed for storage systems, data centers, and high-performance computing connections. Each channel supports data transmission at 10 Gbps, delivering an aggregate data rate of 40 Gbps over distances up to 10 meters.

Product Identification

Zion Code	Zion Description
7217040	40G Passive QSFP+ TO 4×SFP+ Direct Attach Cable

Applications

40G Ethernet Links
InfiniBand QDR applications
Servers, switches, storage and host card adapters

Technical Specifications

Parameter	Specification	Parameter	Specification
Connector Type	QSFP+ to 4×SFP+	Vendor Name	Zion Communication
Max Data Rate	40Gbps	Wire AWG	24AWG - 30AWG
Max Cable Distance	10m	Cable Type	Passive Twinax
Power Supply	3.3V	Operating Temp.	0°C to 70°C (32°F to 158°F)

Related DAC Products

Zion Code	Zion Description
7217010	100G Passive QSFP28 TO QSFP28 Direct Attach Cable
7217020	100G Passive QSFP28 TO 4×SFP28 Direct Attach Cable
7217030	40G Passive QSFP+ TO QSFP+ Direct Attach Cable
7217040	40G Passive QSFP+ TO 4×SFP+ Direct Attach Cable
7217050	25G Passive SFP28 TO SFP28 Direct Attach Cable
7217060	10G Passive SFP+ TO SFP+ Direct Attach Cable
