Home > Products> Fiber Optic Transceivers> 100Gbps Passive Twinax QSFP28 Direct Attach Cable with 5m Max Distance for High-Speed Data Centers

100Gbps Passive Twinax QSFP28 Direct Attach Cable with 5m Max Distance for High-Speed Data Centers

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	Direct Attach Cable

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Max Cable Distance 1:

Connector Type:

QSFP28 To 4×SFP28

Cable Type:

Passive Twinax

Max Data Rate:

100Gbps

Highlight:

100G SFP28 Direct Attach Cable

4×SFP28 Direct Attach Cable

Passive SFP28 Direct Attach Cable

Product Description

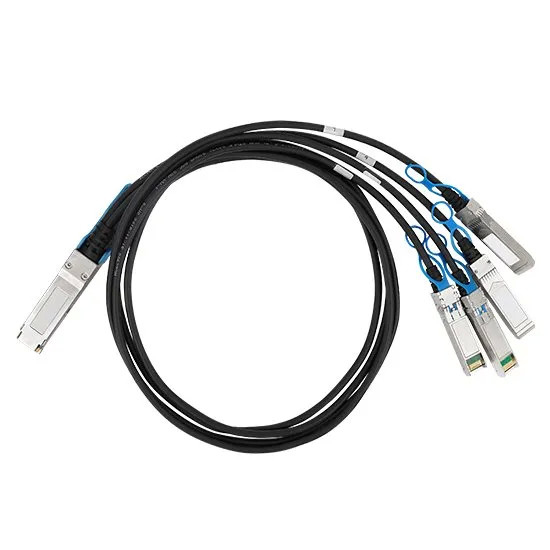

QSFP28 TO 4×SFP28 Direct Attach Cable 100G Passive

The 7217020 100G QSFP28 direct attach cable is a 4-channel parallel passive copper solution designed for storage, data centers, and high-performance computing connections. This cable supports two interface device interconnection with a single channel transmission rate of 25Gbps.

Product Specifications

Zion Code	Zion Description
7217020	100G Passive QSFP28 TO 4×SFP28 Direct Attach Cable

Applications

10G/25G/40G/100G Ethernet
InfiniBand QDR applications
Servers, switches, storage and host card adapters

Technical Parameters

Parameter	Specification
Connector Type	QSFP28 to 4×SFP28
Vendor Name	Zion Communication
Max Data Rate	100Gbps
Wire AWG	25AWG - 30AWG
Max Cable Distance	5m
Cable Type	Passive Twinax
Power Supply	3.3V
Operating Temperature	0°C to 70°C (32°F to 158°F)

Zion Code	Zion Description
7217010	100G Passive QSFP28 TO QSFP28 Direct Attach Cable
7217020	100G Passive QSFP28 TO 4×SFP28 Direct Attach Cable
7217030	40G Passive QSFP+ TO QSFP+ Direct Attach Cable
7217040	40G Passive QSFP+ TO 4×SFP+ Direct Attach Cable
7217050	25G Passive SFP28 TO SFP28 Direct Attach Cable
7217060	10G Passive SFP+ TO SFP+ Direct Attach Cable
