Home > Products> Fiber Optic Transceivers> 100Gbps Passive QSFP28 to QSFP28 Direct Attach Cable with 5m Max Distance for High-Speed Data Centers

100Gbps Passive QSFP28 to QSFP28 Direct Attach Cable with 5m Max Distance for High-Speed Data Centers

100Gbps Passive QSFP28 to QSFP28 Direct Attach Cable with 5m Max Distance for High-Speed Data Centers
100Gbps Passive QSFP28 to QSFP28 Direct Attach Cable with 5m Max Distance for High-Speed Data Centers
Basic Information
Place of Origin: CHINA
Brand Name: Zion communication
Model Number: Direct Attach Cable
Minimum Order Quantity: no limit
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 10 working days
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Max Cable Distance 1: 5m Connector Type: QSFP28 To QSFP28
Cable Type: Passive Twinax Max Data Rate: 100Gbps
Highlight:

Passive 100g Qsfp28 Dac Cable

,

Passive QSFP28 Direct Attach Cable

,

100G QSFP28 Direct Attach Cable

Product Description

Passive QSFP28 TO QSFP28 Direct Attach Cable 100G
Product Identification
Zion Code Zion Description
7217010 100G Passive QSFP28 TO QSFP28 Direct Attach Cable
Applications
  • 100GBASE-SR4 100G Ethernet Links
  • InfiniBand QDR applications
  • Servers, switches, storage and host card adapters
Product Description

The 7217010 100G QSFP28 direct attach cable is a 4-channel parallel passive copper solution designed for storage, data centers, and high-performance computing connections. Each channel supports data transmission at 25 Gbps, delivering a total data rate of 100 Gbps over distances up to 5 meters.

Technical Specifications
Parameter Specification Parameter Specification
Connector Type QSFP28 to QSFP28 Vendor Name Zion Communication
Max Data Rate 100Gbps Wire AWG 25AWG - 30AWG
Max Cable Distance 5m Cable Type Passive Twinax
Power Supply 3.3V Operating Temp. 0°C to 70°C (32°F to 158°F)

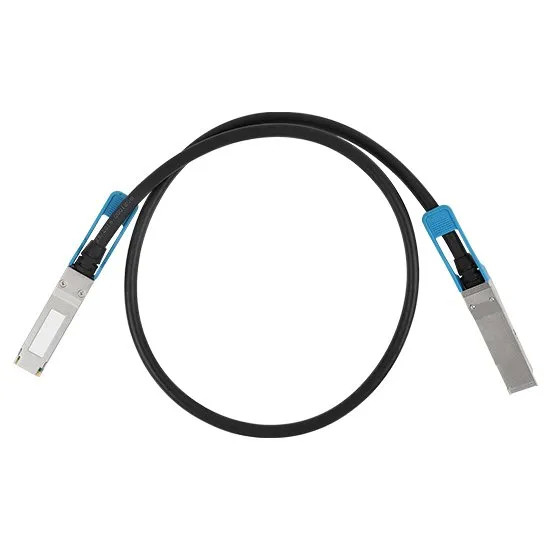

Product Images
100Gbps Passive QSFP28 to QSFP28 Direct Attach Cable with 5m Max Distance for High-Speed Data Centers 0 100Gbps Passive QSFP28 to QSFP28 Direct Attach Cable with 5m Max Distance for High-Speed Data Centers 1
Outline Drawing
100Gbps Passive QSFP28 to QSFP28 Direct Attach Cable with 5m Max Distance for High-Speed Data Centers 2
Related DAC Products
Zion Code Zion Description
7217010 100G Passive QSFP28 TO QSFP28 Direct Attach Cable
7217020 100G Passive QSFP28 TO 4×SFP28 Direct Attach Cable
7217030 40G Passive QSFP+ TO QSFP+ Direct Attach Cable
7217040 40G Passive QSFP+ TO 4×SFP+ Direct Attach Cable
7217050 25G Passive SFP28 TO SFP28 Direct Attach Cable
7217060 10G Passive SFP+ TO SFP+ Direct Attach Cable
Zion Communication Product Portfolio
100Gbps Passive QSFP28 to QSFP28 Direct Attach Cable with 5m Max Distance for High-Speed Data Centers 3
100G QSFP28
100Gbps Passive QSFP28 to QSFP28 Direct Attach Cable with 5m Max Distance for High-Speed Data Centers 4
40G QSFP+
100Gbps Passive QSFP28 to QSFP28 Direct Attach Cable with 5m Max Distance for High-Speed Data Centers 5
10G SFP+
100Gbps Passive QSFP28 to QSFP28 Direct Attach Cable with 5m Max Distance for High-Speed Data Centers 6
1.25G SFP
100Gbps Passive QSFP28 to QSFP28 Direct Attach Cable with 5m Max Distance for High-Speed Data Centers 7
COPPER
100Gbps Passive QSFP28 to QSFP28 Direct Attach Cable with 5m Max Distance for High-Speed Data Centers 8
ACTIVE OPTICAL CABLE (AOC)
100Gbps Passive QSFP28 to QSFP28 Direct Attach Cable with 5m Max Distance for High-Speed Data Centers 9
DIRECT ATTACH CABLE (DAC)
100Gbps Passive QSFP28 to QSFP28 Direct Attach Cable with 5m Max Distance for High-Speed Data Centers 10
MORE PRODUCTS
