10Gbps Data Rate SFP+ Active Optical Cable with 850nm Wavelength for 100m OM4 MMF Connectivity

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	Active Optical Cable

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Wavelength:	850nm	Max Cable Distance 1:	70m On OM3 MMF
Max Cable Distance 2:	100m On OM4 MMF	Connector Type:	SFP+ To SFP+
Fiber Cable Type:	MMF	Max Data Rate:	10Gbps
Highlight:	SFP+ TO SFP+ Active Optical Cable , 10G SFP+ Active Optical Cable , 10Gbps SFP+ Active Optical Cable

Product Description

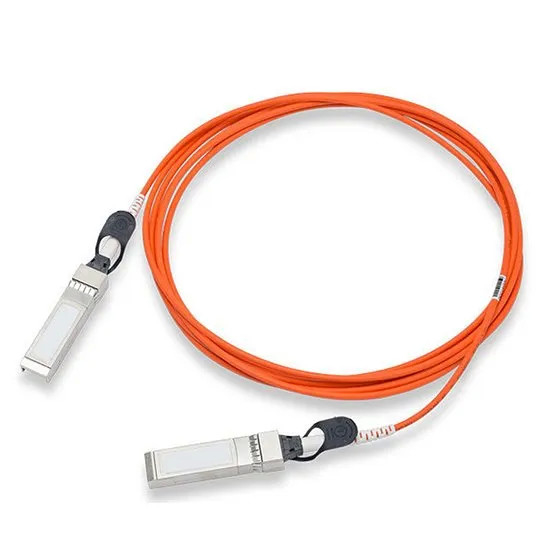

10G SFP+ TO SFP+ Active Optical Cable

Product Overview

High-performance 10G SFP+ active optical cable delivering reliable, high-speed data transmission with low power consumption for demanding network applications.

Product Specifications

Zion Code	Zion Description
7216060	10G SFP+ TO SFP+ Active Optical Cable

Applications

25GBASE-SR4 100G Ethernet Links
InfiniBand QDR applications
Servers, switches, storage and host card adapters

Technical Description

The 7216060 10G SFP+ active optical cables provide a high-performance, low-power consumption, long-reach interconnect solution supporting 10G Ethernet, InfiniBand QDR/DDR/SDR, 12.5G/10G/8G/4G/2G fiber channel, PCIe and SAS protocols.

Specifically engineered for high-speed, short-range data links via optical fiber lines, SFP+ AOC delivers superior signal integrity, extended distance capabilities, excellent electromagnetic immunity, and enhanced bit error rate performance. This cost-effective solution is ideal for data center/storage environments and all short-range data applications.

Technical Parameters

Connector Type	SFP+ to SFP+	Vendor Name	Zion Communication
Max Data Rate	10Gbps	Fiber Cable Type	MMF
Max Cable Distance 1	70m on OM3 MMF	Max Cable Distance 2	100m on OM4 MMF
Transmitter Type	VCSEL	Receiver Type	PIN
Wavelength	850nm	CDR	Support
Power Supply	3.3V	Operating Temp.	0°C to 70°C (32°F to 158°F)

Zion Code	Zion Description
7216010	100G QSFP28 TO QSFP28 Active Optical Cable
7216020	100G QSFP28 TO 4×SFP28 Active Optical Cable
7216030	40G QSFP+ TO QSFP+ Active Optical Cable
7216040	40G QSFP+ TO 4×SFP+ Active Optical Cable
7216050	25G SFP28 TO SFP28 Active Optical Cable
7216060	10G SFP+ TO SFP+ Active Optical Cable
