Home > Products> Fiber Optic Transceivers> 25Gbps SFP28 Active Optical Cable with 850nm Wavelength and 100m OM4 MMF Reach

25Gbps SFP28 Active Optical Cable with 850nm Wavelength and 100m OM4 MMF Reach

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	Active Optical Cable

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Wavelength:	850nm	Max Cable Distance 1:	70m On OM3 MMF
Max Cable Distance 2:	100m On OM4 MMF	Connector Type:	SFP28 To SFP28
Fiber Cable Type:	MMF	Max Data Rate:	25Gbps
Highlight:	SFP28 TO SFP28 Active Optical Cable , 25G SFP28 Active Optical Cable

Product Description

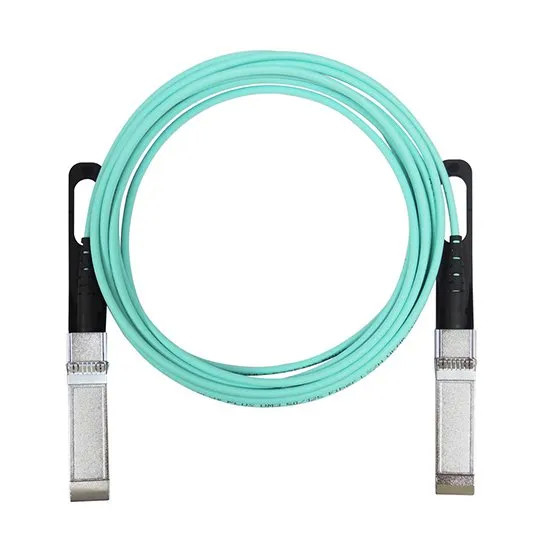

25G SFP28 to SFP28 Active Optical Cable

Product Overview

High-performance 25G SFP28 to SFP28 Active Optical Cable delivering 25Gbps data transmission with low power consumption and extended reach capabilities.

Product Identification

Zion Code	Zion Description
7216050	25G SFP28 TO SFP28 Active Optical Cable

Applications

25GBASE-SR4 100G Ethernet Links
InfiniBand QDR applications
Servers, switches, storage and host card adapters

Technical Description

The 7216050 25G SFP28 active optic cables are a high-performance, low-power consumption, long-reach interconnect solution supporting 25G Ethernet, InfiniBand QDR/DDR/SDR, 12.5G/10G/8G/4G/2G fiber channel, PCIe and SAS protocols.

Specifically engineered for high-speed, short-range data links via optical fiber lines, SFP28 AOC provides superior signal integrity, extended distance capabilities, excellent electromagnetic immunity, and enhanced bit error rate performance. This cost-effective solution is ideal for data center/storage applications and all short-range data transmission requirements.

Technical Specifications

Parameter	Specification	Parameter	Specification
Connector Type	SFP28 to SFP28	Vendor Name	Zion Communication
Max Data Rate	25Gbps	Fiber Cable Type	MMF
Max Cable Distance (OM3)	70m on OM3 MMF	Max Cable Distance (OM4)	100m on OM4 MMF
Transmitter Type	VCSEL	Receiver Type	PIN
Wavelength	850nm	CDR	Support
Power Supply	3.3V	Operating Temperature	0°C to 70°C (32°F to 158°F)

Zion Code	Zion Description
7216010	100G QSFP28 TO QSFP28 Active Optical Cable
7216020	100G QSFP28 TO 4×SFP28 Active Optical Cable
7216030	40G QSFP+ TO QSFP+ Active Optical Cable
7216040	40G QSFP+ TO 4×SFP+ Active Optical Cable
7216050	25G SFP28 TO SFP28 Active Optical Cable
7216060	10G SFP+ TO SFP+ Active Optical Cable
