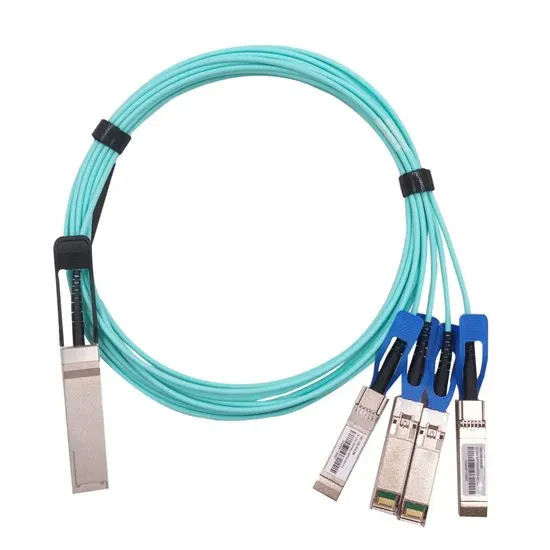

40Gbps QSFP+ to 4×SFP+ Breakout Active Optical Cable with 70m OM3 MMF Reach

Basic Information

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	Active Optical Cable

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Wavelength:	850nm	Max Cable Distance:	70m On OM3 MMF
Connector Type:	QSFP+ To 4×SFP+	Fiber Cable Type:	MMF
Max Data Rate:	40Gbps
Highlight:	MMF QSFP+Active Optical Cable , QSFP+ TO 4×SFP+ Optical Cable

Product Description

40G QSFP+ TO 4×SFP+ Breakout Active Optical Cable MMF

High-performance 40G QSFP+ TO 4×SFP+ Active Optical Cable solution for enterprise networking applications.

Product Identification

Zion Code	Zion Description
7216040	40G QSFP+ TO 4×SFP+ Active Optical Cable

Applications

40 Gigabit Ethernet
InfiniBand QDR, SDR, DDR
Servers, switches, storage and host card adapters

Product Overview

The 7216040 40G QSFP+ TO 4×SFP+ Active Optical Cables deliver high performance with low power consumption, providing long-reach interconnect solutions for 40G Ethernet applications. These cables are compliant with QSFP+ MSA and IEEE 802.3bm 40GBASE-SR4 standards. Each assembly consists of 4 full-duplex lanes, with each lane capable of transmitting data at rates up to 10Gb/s, delivering an aggregated rate of 40Gb/s.

Technical Specifications

Parameter	Specification	Parameter	Specification
Connector Type	QSFP+ to 4×SFP+	Vendor Name	Zion Communication
Max Data Rate	40Gbps	Fiber Cable Type	MMF
Max Cable Distance	70m on OM3 MMF
Transmitter Type	VCSEL	Receiver Type	PIN
Wavelength	850nm	CDR	Support
Power Supply	3.3V	Operating Temp.	0°C to 70°C (32°F to 158°F)

Zion Code	Zion Description
7216010	100G QSFP28 TO QSFP28 Active Optical Cable
7216020	100G QSFP28 TO 4×SFP28 Active Optical Cable
7216030	40G QSFP+ TO QSFP+ Active Optical Cable
7216040	40G QSFP+ TO 4×SFP+ Active Optical Cable
7216050	25G SFP28 TO SFP28 Active Optical Cable
7216060	10G SFP+ TO SFP+ Active Optical Cable
