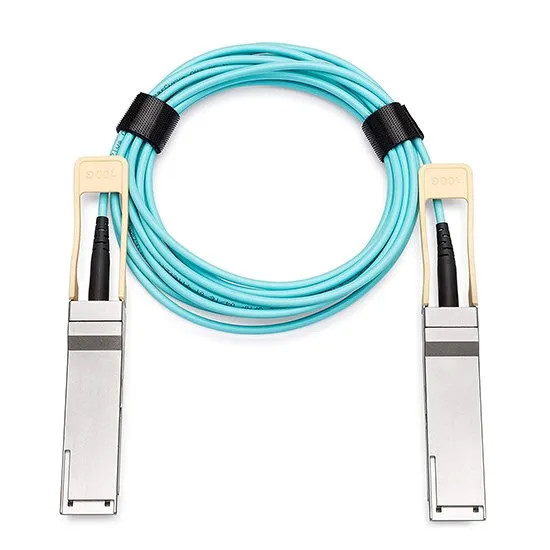

Name: 100G QSFP28 TO QSFP28 Active Optical Cable 850nm
Brand: HANGZHOU ZION COMMUNICATION CO., LTD
SKU: Active Optical Cable
Availability: InStock

Detail Information

Wavelength:	850nm	Max Cable Distance 1:	70m On OM3 MMF
Max Cable Distance 2:	100m On OM4 MMF	Connector Type:	QSFP28 To QSFP28
Fiber Cable Type:	MMF	Max Data Rate:	100Gbps
Highlight:	850nm Active Optical Cable , 100g Qsfp28 Active Optical Cable

Product Description

100G QSFP28 TO QSFP28 Active Optical Cable

Zion Code and Description

Zion Code	Zion Description
7216010	100G QSFP28 TO QSFP28 Active Optical Cable

Applications

100GBASE-SR4100G Ethernet Links; InfiniBand QDR applications
Servers,switches, storage and host card adap

Description

The 7216010 100G QSFP28 active optic cables are a high performance, low power consumption,
long reach interconnect solution supporting 100G Ethernet ,or Infini BandQDR/DDR/SDR,
12.5G/10G/8G/4G/2G fiber channel ,PCIe and SAS.

It is compliant with the QSFP MSA and IEEE P802.3ba. QSFP AOC is an assembly of 4 full-duplex lanes, where each laneis capableof transmitting data at rates up to 25.78125Gb/s, providing an aggregated rateof 104Gb/s.

Main product parameters

Connector Type	QSFP28 to QSFP28	Vendor Name	Zion Communication
Max Data Rate	100Gbps	Fiber cable Type	MMF
Max Cable Distance 1	70m on OM3 MMF	Max Cable Distance 2	100m on OM4 MMF
Transimitter Type	VCSEL	Receiver Type	PIN
Wavelength	850nm	CDR	Support
Power Supply	3.3V	Operating Temp.	0°C to 70°C (32°F to 158°F)

Outline Drawing

Zion Communication’s Hot AOC types

Zion Code		Zion Description
7216010		100G QSFP28 TO QSFP28 Active Optical Cable
7216020		100G QSFP28 TO 4×SFP28 Active Optical Cable
7216030		40G QSFP+ TO QSFP+ Active Optical Cable
7216040		40G QSFP+ TO 4×SFP+ Active Optical Cable
7216050		25G SFP28 TO SFP28 Active Optical Cable
7216060		10G SFP+ TO SFP+ Active Optical Cable

ACTIVE OPTICAL CABLE (AOC)

DIRECT ATTACH CABLE(DAC)

MORE PRODUCTS

Tag:

Place of Origin:	CHINA
Brand Name:	Zion communication
Model Number:	Active Optical Cable

Minimum Order Quantity:	no limit
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 10 working days
Payment Terms:	T/T
Supply Ability:	no limit
