1000BASE-TX Copper SFP Transceiver with RJ-45 Connector for 100m Cable Distance

Basic Information

Place of Origin:	China
Brand Name:	Hello Signal
Certification:	IEC 60825-1:2007
Model Number:	Copper

Minimum Order Quantity:	no limit
Packaging Details:	10 PC/Plastic Bag
Delivery Time:	Normally 10 workingdays
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Form Factor:	SFP	Max Data Rate:	1.25 Gbps
Max Cable Distance1:	100m	Transmission Media:	Cate 5e/6/6a
Connector Type:	RJ-45	Operating Temp.:	0°C To 70°C (32°F To 158°F)
Highlight:	1000BASE SFP 100M , 100BASE SFP 100M , 10BASE SFP 100M

Product Description

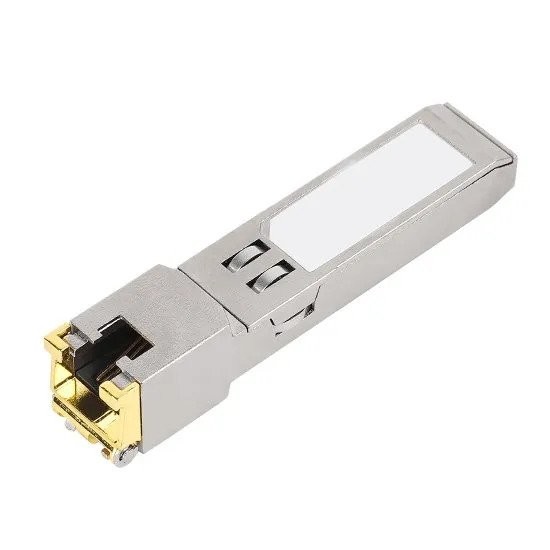

10/100/1000BASE SFP 100M Copper-T RJ-45 Copper Transceiver

ZION Communication's 7215020 Copper Small Form Pluggable (SFP) transceiver module is specifically designed for converting 100Base-FX NRZI port interface to 10/100/1000Base-TX interface with RJ45 connector.

Product Specifications

Zion Code	7215020
Zion Description	10/100/1000BASE SFP 100M Copper-T RJ-45 Copper Transceiver

Applications

This 1000Base-TX Copper SFP Transceiver supports SFP-based switch 1000Base-FX ports that accept standard 1000Base-FX optics SFP

Technical Features

The transceiver module is compliant with the SFP Multi Source Agreement (MSA) and IEEE802.3u. With hot plug capability, the module offers flexible installation into SFP MSA compliant ports without interrupting host equipment operation. The Copper SFP transceivers use an integrated RJ-45 connector with transformer and PHY IC.

Main Product Parameters

Form Factor	SFP	Vendor Name	Zion Communication
Max Data Rate	1.25Gbps	Max Cable Distance	100m
Transmission Media	Cat 5e/6/6a	Connector Type	RJ-45
DDM	NOT Supported	Operating Temperature	0°C to 70°C (32°F to 158°F)

Regulatory Compliance

Features	Reference	Performance
Electrostatic Discharge (ESD)	IEC/EN 61000-4-2	Compatible with standards
Electromagnetic Interference (EMI)	FCC Part 15 Class B EN 55022 Class B (CISPR 22A)	Compatible with standards
Laser Eye Safety	FDA 21CFR 1040.10, 1040.11 IEC/EN 60825-1, 2	Class 1 laser product
Component Recognition	IEC/EN 60950, UL	Compatible with standards
ROHS	2002/95/EC	Compatible with standards
EMC	EN61000-3	Compatible with standards

Zion Communication Hot Copper Transceiver Types

Zion Code	Zion Description
7215010	10/100BASE SFP 100M Copper-T RJ-45 Copper Transceiver
7215020	10/100/1000BASE SFP 100M Copper-T RJ-45 Copper Transceiver
7215030	1000BASE SFP 100M Copper-T RJ-45 Copper Transceiver
7215040	10G SFP 30M Copper-T RJ-45 Copper Transceiver
